Q-0903Q0008084i

Active

Amphenol Custom Cable

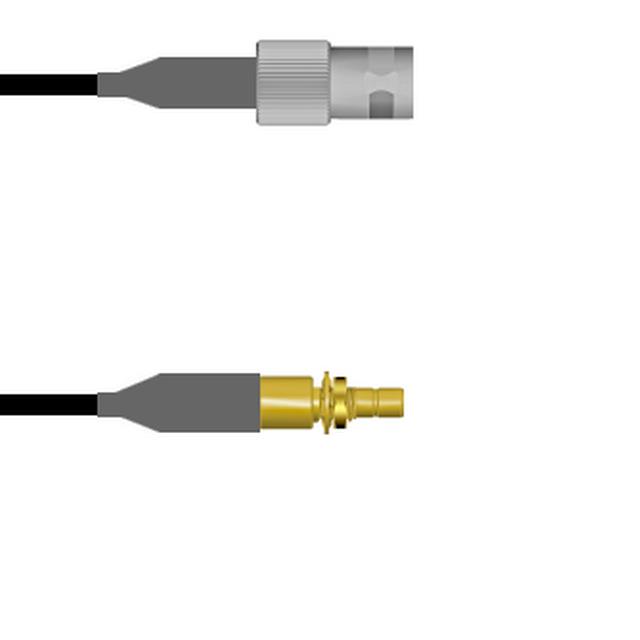

CBL ASSY BNC-SMB JACK-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0903Q0008084i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0903Q0008084i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0903Q0 Series

Part	2nd Contact Gender	2nd Connector Mounting Type	Overall Impedance	1st Connector	Length	Length	1st Contact Gender	Cable Type	2nd Connector	Style	Features	Frequency - Max [Max]	Color	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-0903Q0008006i	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	152.4 mm	6 in	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-0903Q00081.5M	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	1.5 m	59.1 in	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-0903Q0008.75M	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	750 mm	29.53 "	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-0903Q0008036i	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	91.44 cm	36 in	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-0903Q0008024i	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	609.6 mm	24 "	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-0903Q0008084i	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	2.1 m	84 in	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-0903Q0008003M	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	3 m	118.1 in	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-0903Q0008012i	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	304.8 mm	12 "	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-0903Q0008060i	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	1.5 m	5 '	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0903Q0008001M	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	1 m	39.4 in	Female	RG-58	SMB Jack	BNC to SMB	Shielded	4 GHz	Black	Free Hanging (In-Line)	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.85
		25	$ 89.85
		50	$ 88.84
		100	$ 87.84
		250	$ 86.84

Description

General part information

Q-0903Q0 Series

Cable Assembly Coaxial BNC to SMB RG-58 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
