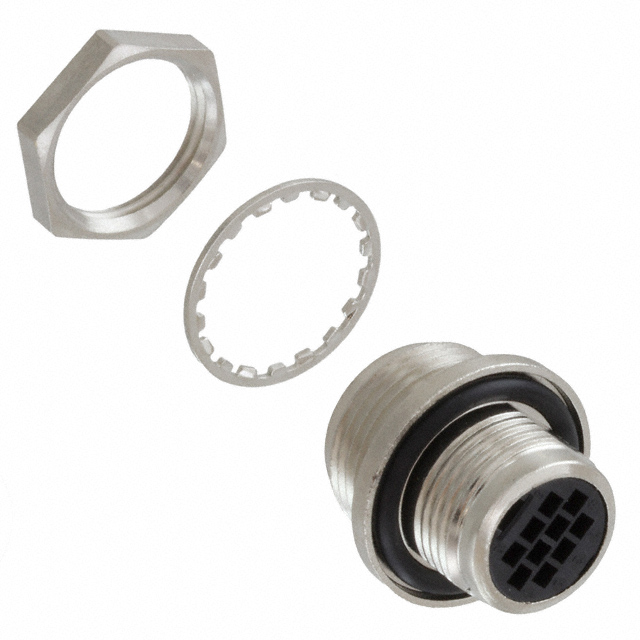

JB1CB10SL1-R
ObsoleteJAE Electronics
CONN RCPT HSG FMALE 10POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
JB1CB10SL1-R
ObsoleteJAE Electronics
CONN RCPT HSG FMALE 10POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JB1CB10SL1-R |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 22 |
| Contact Type | Crimp |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Resin |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | B-10 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JB1CB10S Series
10 Position Circular Connector Receptacle Housing Panel Mount
