1858A B594000

Obsolete

Belden Inc.

#15 GIFHDLDPE PVC TRIAX

Search across all available documentation for this part.

Obsolete

Belden Inc.

#15 GIFHDLDPE PVC TRIAX

Technical Specifications

Parameters and characteristics for this part

Specification	1858A B594000

Cable Group	RG-11
Cable Type	Triaxial
Conductor Material	Copper, Bare
Conductor Strand	19, 27 AWG
Dielectric Diameter [diameter]	7.92 mm
Dielectric Diameter [diameter]	0.312 "
Jacket (Insulation) Diameter	13.21 mm
Jacket (Insulation) Diameter [diameter]	0.52 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1219.2 m
Length	4000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-50 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
VoP, Velocity of Propagation	78
Wire Gauge	15 AWG

Part	Shield Type	Shield Coverage	Cable Group	Wire Gauge	Shield Material	Jacket (Insulation) Material	Jacket Color	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Length	Length	Cable Type
Belden Inc. 1858A B594000	Braid	95 %	RG-11	15 AWG	Copper Bare	Poly-Vinyl Chloride (PVC)	Black	Video	7.92 mm	0.312 "	78	0.52 in	13.21 mm	Copper Bare	-50 °C	80 C	19 27 AWG	1219.2 m	4000 ft	Triaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

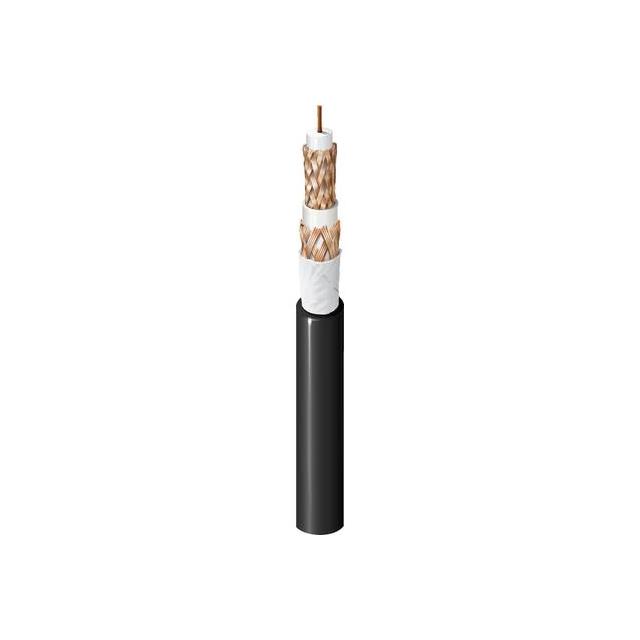

Triaxial Cable 15 AWG RG-11 4000.0' (1219.20m)
