Part	Package Width	Package Name	Package Length	Rise / Fall Time (Typ)	Rise / Fall Time (Max)	Propagation Delay tpLH (Max)	Propagation Delay tpHL (Max)	Technology	Approval Agency	Voltage - Isolation	Number of Channels	Current - Peak Output	Pulse Width Distortion (Max)	Common Mode Transient Immunity (Min)	Package / Case	Mounting Type	Current - Output Low	Current - Output High	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output Supply (Max)	Voltage - Output Supply (Min)	Supplied Contents	Type	Utilized IC / Part	Function	Contents	Fall Time (Typ)	Rise Time (Typ)
Skyworks Solutions Inc. SI823H3AB-IM1	5 mm	14-DFN 14-QFN	5 mm	12 ns	12 ns	116 ns	116 ns	Capacitive Coupling	CQC CSA UL VDE	2500 Vrms	1	6 A	5 ns	125 kV/µs	14-VDFN	Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V

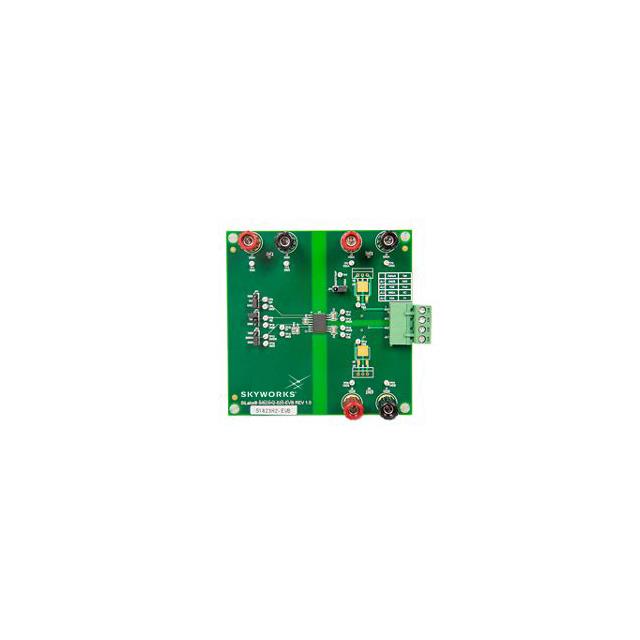

Skyworks Solutions Inc. SI823H2-KIT																							Board(s)	Power Management	SI823H2	Gate Driver	Board
Skyworks Solutions Inc. SI823H8BD-IS3R	7.5 mm	14-SOIC	0.295 in	12 ns	12 ns	30 ns	30 ns	Capacitive Coupling	CQC CSA UL VDE	5000 Vrms	1	6 A	5 ns	125 kV/µs		Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V
Skyworks Solutions Inc. SI823HEN1-IS3
Skyworks Solutions Inc. SI823H3CD-IS3R	7.5 mm	14-SOIC	0.295 in	12 ns	12 ns	116 ns	116 ns	Capacitive Coupling	CQC CSA UL VDE	5000 Vrms	1	6 A	5 ns	125 kV/µs		Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V
Skyworks Solutions Inc. SI823H4CD-IS3	7.5 mm	14-SOIC	0.295 in	12 ns	12 ns	30 ns	30 ns	Capacitive Coupling	CQC CSA UL VDE	5000 Vrms	1	6 A	5 ns	125 kV/µs		Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V
Skyworks Solutions Inc. SI823H3BD-IS3	7.5 mm	14-SOIC	0.295 in	12 ns	12 ns	116 ns	116 ns	Capacitive Coupling	CQC CSA UL VDE	5000 Vrms	1	6 A	5 ns	125 kV/µs		Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V
Skyworks Solutions Inc. SI823H5AB-IM1	5 mm	14-DFN 14-QFN	5 mm	12 ns	12 ns	30 ns	30 ns	Capacitive Coupling	CQC CSA UL VDE	2500 Vrms	2	6 A	5 ns	125 kV/µs	14-VDFN	Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V
Skyworks Solutions Inc. SI823H5AB-IM1R	5 mm	14-DFN 14-QFN	5 mm	12 ns	12 ns	30 ns	30 ns	Capacitive Coupling	CQC CSA UL VDE	2500 Vrms	2	6 A	5 ns	125 kV/µs	14-VDFN	Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V
Skyworks Solutions Inc. SI823H1CB-IS1	3.9 mm	16-SOIC	0.154 in			30 ns	58 ns	Capacitive Coupling	CQC CSA UL VDE	2500 Vrms	2	6 A	5 ns	125 kV/µs		Surface Mount	4 A	4 A	125 °C	-40 °C	30 V	5.5 V						12 ns	12 ns
