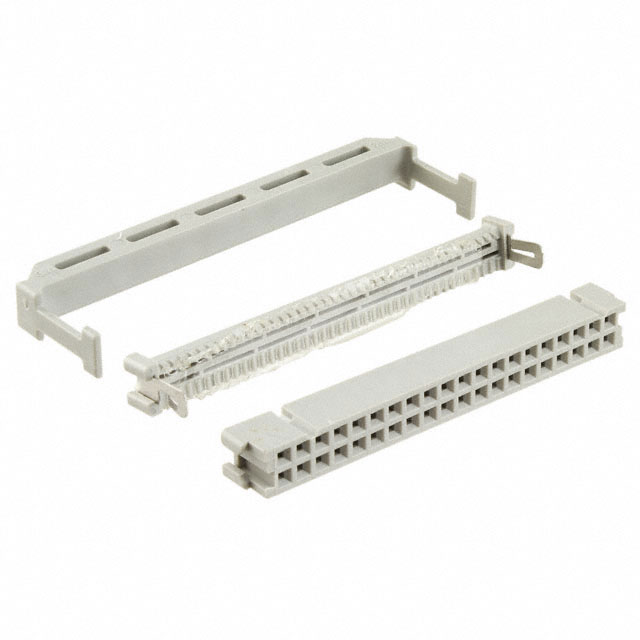

3417-6040

Active

3M (TC)

CONN RCPT 40P IDC 26-28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

3417-6040

Active

3M (TC)

CONN RCPT 40P IDC 26-28AWG GOLD

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3417-6040

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	40
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

3417 Series

Part	Number of Rows	Contact Finish	Contact Type	Cable Termination	Mounting Type	Row Spacing [x]	Row Spacing	Features	Pitch [x]	Pitch [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Wire Type	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3417-6000	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle
3M (TC) 3417-7040	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Closed End Strain Relief	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle
3M (TC) 3417-G600	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle	26 AWG	28 AWG	Solid Stranded
3M (TC) 3417-7000	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Closed End	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle
3M (TC) 3417-H600	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle	26 AWG	28 AWG	Solid Stranded
3M (TC) 3417-6040	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Strain Relief	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle
3M (TC) 3417-6640	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key Strain Relief	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle
3M (TC) 3417-6600	2	Gold	Female Socket	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	40	Ribbon Cable	Receptacle	26 AWG	28 AWG	Solid Stranded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.47
		10	$ 8.53
		300	$ 6.80
		600	$ 6.39
		1200	$ 5.64

Description

General part information

3417 Series

40 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
