45-180S.1C90.003.108

Active

EAO

ROTARY SWITCH, 3 POSITION, 1 POLE, 45 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

45-180S.1C90.003.108

Active

EAO

ROTARY SWITCH, 3 POSITION, 1 POLE, 45 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-180S.1C90.003.108	45-180S Series

Approval Agency	UL, CSA, VDE, CCC, CE	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO	DPST-NO
Current Rating (Amps)	10 A	10 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles	1000000 Cycles
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

45-180S Series

SWITCH SELECT 3POS DPST 10A 500V

Part	Mechanical Life	Current Rating (Amps)	Termination Style	Type	Ingress Protection	Circuit	Illumination	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Panel Cutout Dimensions [diameter]
EAO 45-180S.3C90.003.408	1000000 Cycles	10 A	Spring Terminal	Standard	IP66, IP67, IP69K	DPST-NO	Non-Illuminated	Mom-Off-Mom	500 V	500 V	70 °C	-25 °C	CCC, CE, CSA, UL, VDE	22.3 mm
EAO 45-180S.1C90.003.108	1000000 Cycles	10 A	Screw Terminal	Standard	IP66, IP67, IP69K	DPST-NO	Non-Illuminated	Mom-Off-Mom	500 V	500 V	70 °C	-25 °C	CCC, CE, CSA, UL, VDE	22.3 mm
EAO 45-180S.2C90.003.108	1000000 Cycles	10 A	Screw Terminal	Standard	IP66, IP67, IP69K	DPST-NO	Non-Illuminated	Mom-Off-Mom	500 V	500 V	70 °C	-25 °C	CCC, CE, CSA, UL, VDE	22.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.24
		10	$ 53.97
		25	$ 50.35
		50	$ 48.38
		100	$ 45.09
Newark	Each	10	$ 59.11

Description

General part information

45-180S Series

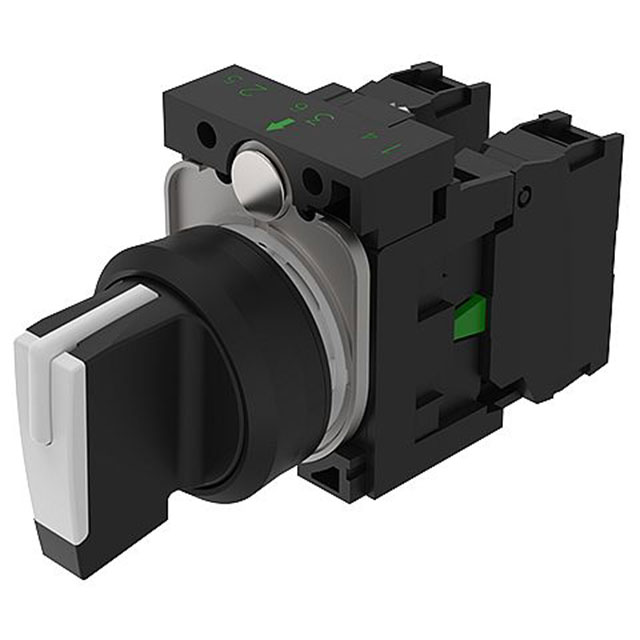

The 45-180S.1C90.003.108 from EAO is a selector switch. This actuator is intuitive to operate, provide distinctive tactile feedback, has a long service life of up to 1 million switching cycles and high front protection (up to IP69K).
