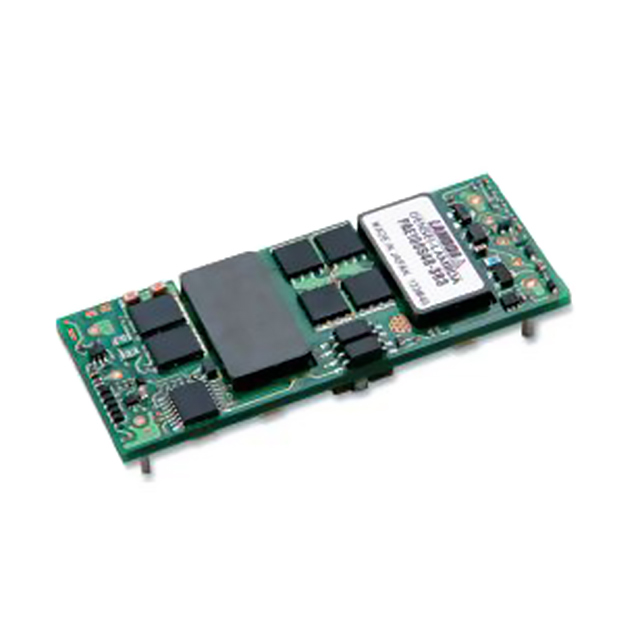

PAE50S48-1R8/V

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 36 W, 1 OUTPUT, 1.8 V, 20 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAE50S48-1R8/V

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 36 W, 1 OUTPUT, 1.8 V, 20 A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PAE50S48-1R8/V

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	20 A
Efficiency	87 %
Features	OCP, OVP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module
Size / Dimension [x]	2.28 in
Size / Dimension [x]	57.9 mm
Size / Dimension [y]	22.8 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.33 in
Type	Isolated Module
Voltage - Input (Max) [Max]	76 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	1.8 V

PAE50S48 Series

Part	Control Features	Mounting Type	Features	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case	Voltage - Isolation	Voltage - Output 1	Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Current - Output (Max) [Max]
TDK-LAMBDA PAE50S48-5/V	Active Low Enable	Through Hole	OCP OVP Remote On/Off	ITE (Commercial)	76 V	85 °C	-40 °C	1	8-DIP Module	1.5 kV	5 V	Isolated Module	36 V	22.8 mm	8.5 mm	0.9 "	2.28 in	57.9 mm	0.33 in	90 %	10 A
TDK-LAMBDA PAE50S48-1R8/V	Active Low Enable	Through Hole	OCP OVP Remote On/Off	ITE (Commercial)	76 V	85 °C	-40 °C	1	8-DIP Module	1.5 kV	1.8 V	Isolated Module	36 V	22.8 mm	8.5 mm	0.9 "	2.28 in	57.9 mm	0.33 in	87 %	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.82
Newark	Each	1	$ 68.82
		10	$ 66.01
		25	$ 63.14
		50	$ 62.03

Description

General part information

PAE50S48 Series

PAE50S48-1R8/V is a PAE50 series high efficiency eighth brick DC-DC converter. It includes overcurrent and overvoltage protection. Application includes telecommunications, data communications, networking equipment, test equipment, industrial electronics and distributed power architecture. Certified by IEC/EN/UL/CSA60950-1, IEC/EN/UL/CSA62368-1.
