0968-0-15-20-76-14-11-0
ActiveMill-Max Manufacturing Corp.
HORIZONTAL SURFACE MOUNT (HSMT)
Deep-Dive with AI
Search across all available documentation for this part.

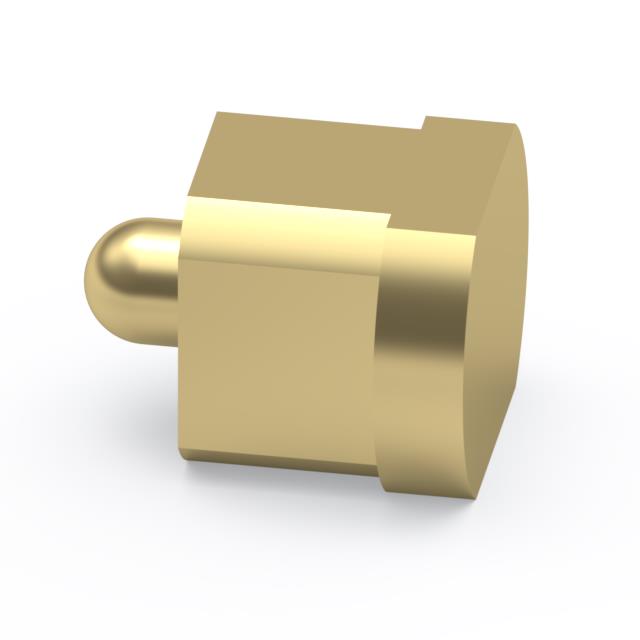

0968-0-15-20-76-14-11-0
ActiveMill-Max Manufacturing Corp.
HORIZONTAL SURFACE MOUNT (HSMT)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0968-0-15-20-76-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 6.4 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 3.48 mm |
| Maximum Working Height [Max] | 0.137 in |
| Minimum Working Height [Min] | 2.5 mm |
| Minimum Working Height [Min] | 0.098 in |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 15 gf |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 3.18 mm |
| Pad Layout Dimension [diameter] | 0.125 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
| Recommended Working Height | 2.98 mm |
| Recommended Working Height | 0.117 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.91 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.50 | |||
| 3000 | $ 0.45 | |||
Description
General part information
0968-0 Series
Contact Spring Surface Mount
