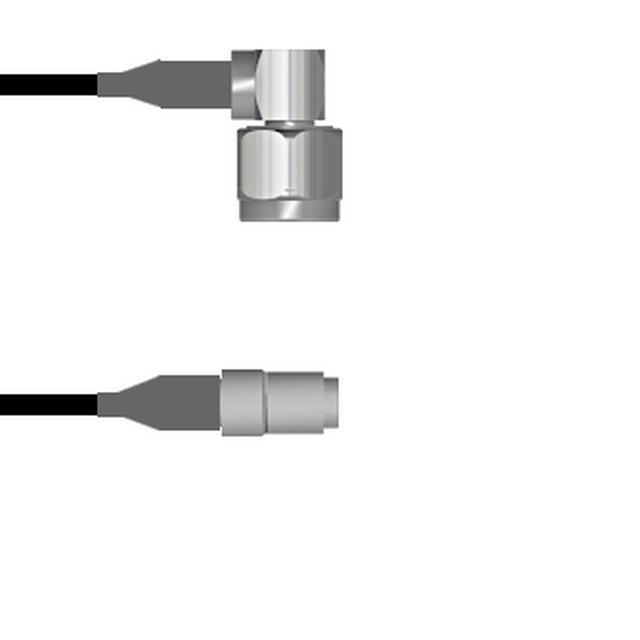

Q-2A066000M.75M

Active

Amphenol Custom Cable

CBL ASY 1.0/2.3-NTYPE P-P 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2A066000M.75M

Active

Amphenol Custom Cable

CBL ASY 1.0/2.3-NTYPE P-P 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2A066000M.75M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	2.5 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	N-Type
Style

Q-2A0660 Series

Part	2nd Connector	Length	Length	Length	Color	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector Mounting Type	Style	Cable Type	Overall Impedance	1st Contact Gender	Features	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-2A066000M001M	N-Type Plug Right Angle	1 m	3.3 ft	39.4 in	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M048i	N-Type Plug Right Angle	1200 mm	4 ft	48 in	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M072i	N-Type Plug Right Angle	1.8 m	6 ft	72 in	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M036i	N-Type Plug Right Angle	91.44 cm		36 in	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M018i	N-Type Plug Right Angle				Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2A066000M2.5M	N-Type Plug Right Angle	2.5 m	8.2 '	98.4 in	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M024i	N-Type Plug Right Angle	609.6 mm		24 "	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M060i	N-Type Plug Right Angle	1.5 m	5 ft	5 '	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M.75M	N-Type Plug Right Angle	750 mm		29.53 "	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male
Amphenol Custom Cable Q-2A066000M012i	N-Type Plug Right Angle	304.8 mm		12 "	Black	2.5 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	N-Type	LMR 240	50 Ohms	Male	Shielded	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 142.44
		25	$ 139.73
		50	$ 137.02
		100	$ 134.31
		250	$ 131.60

Description

General part information

Q-2A0660 Series

Cable Assembly Coaxial 1.0/2.3 to N-Type LMR 240 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
