JB5CS05FM00N

Obsolete

JAE Electronics

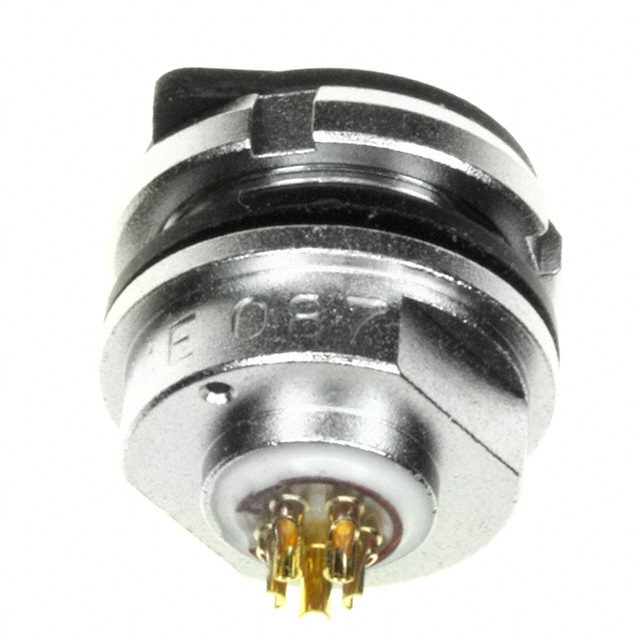

CONN RCPT FMALE 5POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT FMALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JB5CS05FM00N

Applications	Telecommunications, Medical, Test & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Dust Cap
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Chromium
Shell Material	Copper Alloy
Shell Size - Insert	S
Shielding	Shielded
Voltage Rating	320 VAC

Part	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Current Rating (Amps)	Voltage Rating	Insert Material	Applications	Orientation	Color	Ingress Protection	Fastening Type	Mounting Feature	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shell Size - Insert	Shielding	Contact Finish - Mating	Features	Shell Material
JAE Electronics JB5CS05FM00N	Metal	30 Áin	0.76 Ám	Receptacle Female Sockets	3 A	320 VAC	Synthetic Resin	Medical Telecommunications Test & Measurement	N	Silver	IP68 - Dust Tight Waterproof	Push-Pull	Bulkhead - Front Side Nut	Chromium	85 °C	-55 °C	Copper Alloy	S	Shielded	Gold	Dust Cap	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
