R128484001

Active

Radiall USA, Inc.

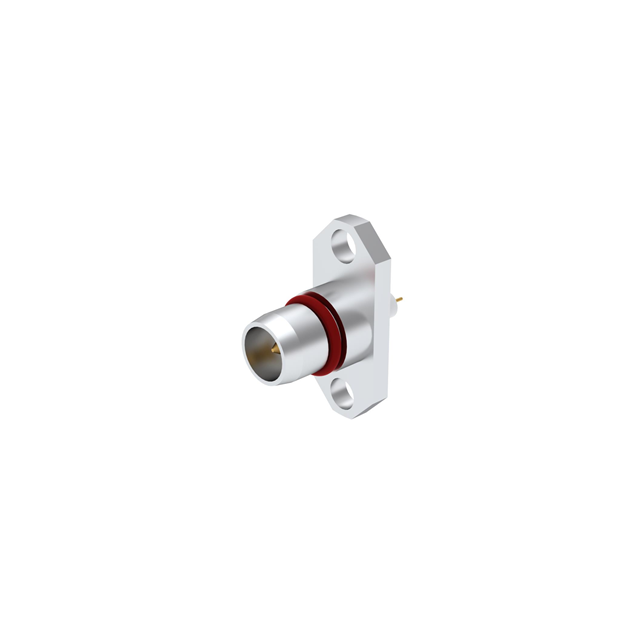

BMA / 2 HOLE FLANGE PLUG RECEPTA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BMA / 2 HOLE FLANGE PLUG RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	R128484001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	22 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP54 - Dust Protected
Mating Cycles	1000
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Fastening Type	Body Material	Connector Type	Center Contact Plating	Features	Shield Termination	Housing Color	Mounting Type	Dielectric Material	Impedance	Mounting Feature	Frequency - Max [Max]	Contact Termination	Voltage Rating	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Number of Ports	Mating Cycles	Ingress Protection
Radiall USA, Inc. R128484001	Snap-On	Stainless Steel	Male Pin Plug	Gold	Extended Insulation	Solder	Silver	Panel Mount Through Hole	Polytetrafluoroethylene (PTFE)	50 Ohms	Flange	22 GHz	Solder	500 V	Beryllium Copper	125 °C	-65 ░C	BMA	1	1000	IP54 - Dust Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 34.34

General part information

BMA Connector Plug, Male Pin 50 Ohms Panel Mount, Through Hole Solder
