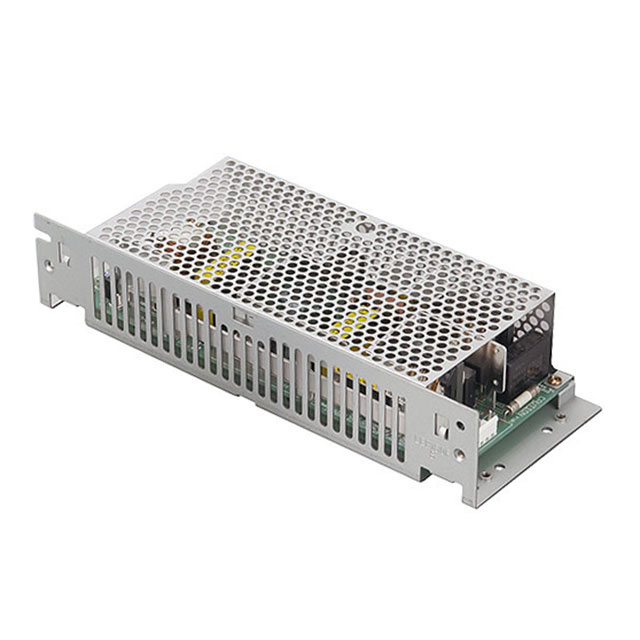

LEP150F-24-SNC

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LEP150F-24-SNC

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LEP150F-24-SNC

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	6.3 A
Efficiency	85 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [x]	222 mm
Size / Dimension [x]	8.74 "
Size / Dimension [y]	85.1 mm
Size / Dimension [y]	3.35 in
Size / Dimension [z]	39.9 mm
Size / Dimension [z]	1.57 "
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

LEP150F Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Type	Efficiency	Applications	Mounting Type	Current - Output 1	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Power (Watts)
Cosel USA, Inc. LEP150F-24-S	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	24 V	Open Frame	85 %	ITE (Commercial)	Chassis Mount	6.3 A	-10 °C	158 °F
Cosel USA, Inc. LEP150F-24-SN	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	24 V	Enclosed	85 %	ITE (Commercial)	Chassis Mount	6.3 A			-10 °C	70 °C	DC Input Capable Universal Input	150 W
Cosel USA, Inc. LEP150F-48	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	48 V	Open Frame	87 %	ITE (Commercial)	Chassis Mount	3.2 A	-10 °C	158 °F
Cosel USA, Inc. LEP150F-24-T	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	24 V	Open Frame	85 %	ITE (Commercial)	Chassis Mount	6.3 A	-10 °C	158 °F
Cosel USA, Inc. LEP150F-24-SNC	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	24 V	Enclosed	85 %	ITE (Commercial)	Chassis Mount	6.3 A	-10 °C	158 °F
Cosel USA, Inc. LEP150F-48-D40	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	48 V	Open Frame	87 %	ITE (Commercial)	Chassis Mount	3.2 A	-10 °C	158 °F
Cosel USA, Inc. LEP150F-36-T	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	36 V	Open Frame	86 %	ITE (Commercial)	Chassis Mount	4.2 A	-10 °C	158 °F
Cosel USA, Inc. LEP150F-36	85.1 mm	222 mm	39.9 mm	3.35 in	8.74 "	1.57 "	CE cURus TUV	3000 V	1	36 V	Open Frame	86 %	ITE (Commercial)	Chassis Mount	4.2 A	-10 °C	158 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LEP150F Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources
