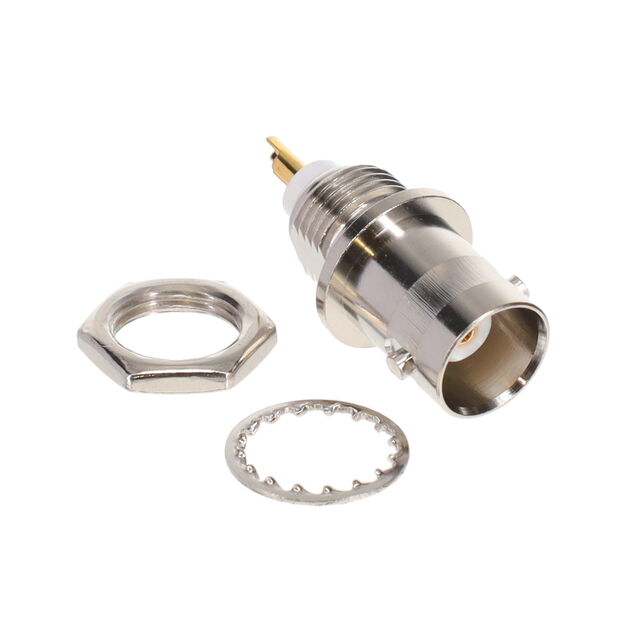

R141563161
ActiveRadiall USA, Inc.
RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, SOLDER TERMINAL, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
R141563161
ActiveRadiall USA, Inc.
RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, SOLDER TERMINAL, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R141563161 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyoxymethylene (POM) |
| Fastening Type | Bayonet Lock |
| Features | Extended Insulation |
| Frequency - Max [Max] | 1.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -35 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.34 | |
| 10 | $ 9.30 | |||
| 25 | $ 8.76 | |||
| 50 | $ 8.54 | |||
| 100 | $ 8.31 | |||
| 300 | $ 7.42 | |||
| 500 | $ 6.97 | |||
| 1000 | $ 6.16 | |||
Description
General part information
R14156 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
