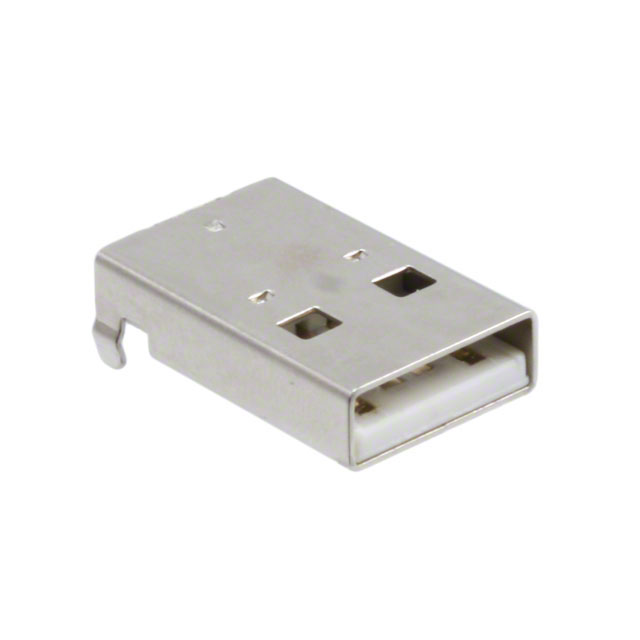

1001-011-01101

Active

CnC Tech, LLC

CONN USB 1.1 TYPE A PL 4 POS 2MM/2.5MM SOLDER RA SMD 4 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN USB 1.1 TYPE A PL 4 POS 2MM/2.5MM SOLDER RA SMD 4 TERMINAL 1 PORT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 1.1 Plug Connector 4 Position Surface Mount, Right Angle; Through Hole

Specification	1001-011-01101	1001-011 Series

Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A)
Contact Finish	Gold	Gold
Current Rating (Amps)	1.5 A	1.5 A
Gender	Plug	Plug
Insulation Color	-	White
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Horizontal	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle	Through Hole, Surface Mount, Right Angle
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shell/Shielding Material	Steel	Steel, Brass
Shielding	-	Unshielded
Specifications	USB 1.1	USB 1.1
Termination	Solder	Solder
Voltage - Rated	30 V	30 V

Part	Termination	Voltage - Rated	Connector Type	Current Rating (Amps)	Number of Contacts [custom]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Shell/Shielding Material	Mounting Type	Number of Ports	Specifications	Gender	Mounting Feature	Insulation Color	Shielding
CnC Tech, LLC 1001-011-01101	Solder	30 V	USB-A (USB TYPE-A)	1.5 A	4	UL94 V-0	-40 °C	105 ░C	Gold	Steel	Surface Mount, Right Angle, Through Hole	1	USB 1.1	Plug	Horizontal
CnC Tech, LLC 1001-011-01101-TR	Solder	30 VAC	USB-A (USB TYPE-A)	1.5 A	4	UL94 V-0	-40 °C	105 ░C	Gold	Brass	Surface Mount, Right Angle, Through Hole	1	USB 1.1	Plug	Horizontal	White	Unshielded
