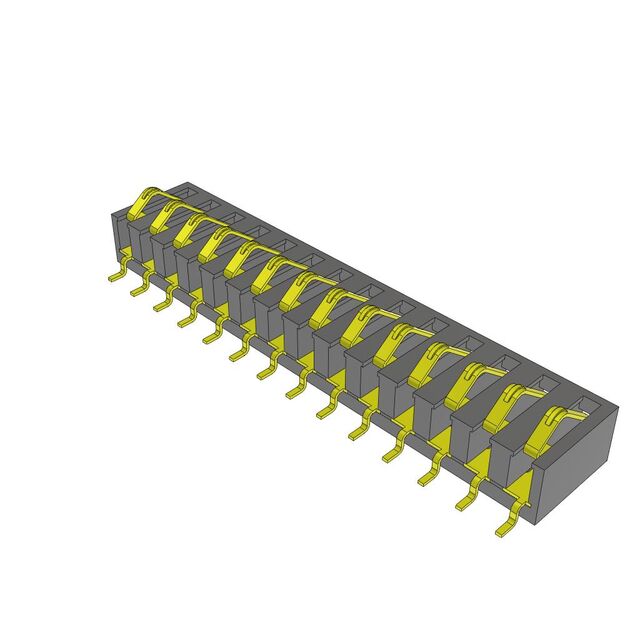

SIB-114-02-F-S

Active

Samtec Inc.

CONN SPRING MOD 14POS SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SPRING MOD 14POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SIB-114-02-F-S

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	Flash
Material	Phosphor Bronze
Mounting Type	Surface Mount
Number of Contacts	14
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Material	Contact Finish	Connector Type	Mounting Type	Number of Contacts	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]
Samtec Inc. SIB-114-02-F-S	Phosphor Bronze	Gold	Compression Contact Non-Gendered	Surface Mount	14	Flash	1	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	16	$ 7.50

General part information

14 Position Spring Compression Contact, Non-Gendered Connector Surface Mount

Technical documentation and resources
