EHT-107-01-S-D-SM-LC-01

Active

Samtec Inc.

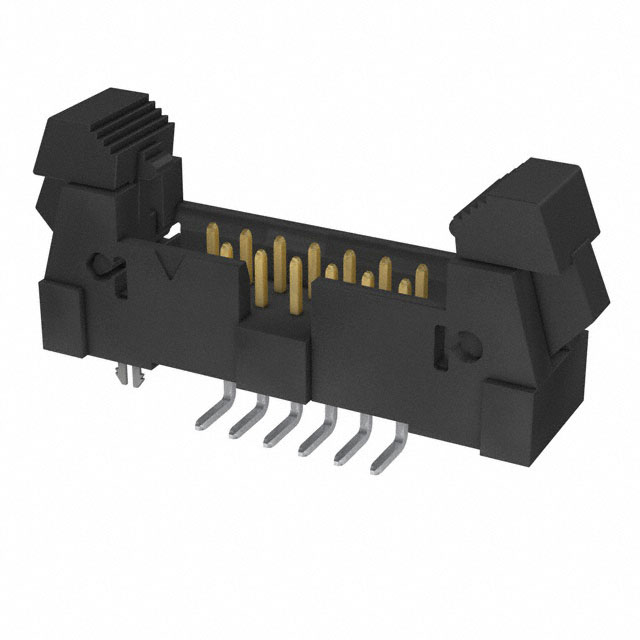

CONN HEADER SMD 14POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

EHT-107-01-S-D-SM-LC-01

Active

Samtec Inc.

CONN HEADER SMD 14POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-107-01-S-D-SM-LC-01

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Board Lock, Keying Slot
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-107 Series

Part	Termination	Contact Length - Mating	Contact Length - Mating	Mounting Type	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Material	Number of Positions Loaded	Insulation Material	Fastening Type	Shrouding	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Rows	Number of Positions	Insulation Height	Insulation Height	Current Rating (Amps)	Material Flammability Rating	Style	Contact Finish - Mating	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post
Samtec Inc. EHT-107-01-L-D	Solder	3.05 mm	0.12 in	Through Hole	Keying Slot	0.079 in	2 mm	15 µin	0.38 µm	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm	0.114 in	2.9 mm
Samtec Inc. EHT-107-01-SM-D	Solder	3.05 mm	0.12 in	Through Hole	Keying Slot	0.079 in	2 mm	30 Áin	0.76 Ám	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm	0.114 in	2.9 mm
Samtec Inc. EHT-107-01-F-D	Solder	3.05 mm	0.12 in	Through Hole	Keying Slot	0.079 in	2 mm	3 µin	0.076 µm	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm	0.114 in	2.9 mm
Samtec Inc. EHT-107-01-S-D-SM-LC-01	Solder	3.05 mm	0.12 in	Surface Mount	Board Lock Keying Slot	0.079 in	2 mm	30 Áin	0.76 Ám	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm
Samtec Inc. EHT-107-01-S-D-SM-P	Solder	3.05 mm	0.12 in	Surface Mount	Keying Slot Pick and Place	0.079 in	2 mm	30 Áin	0.76 Ám	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm
Samtec Inc. EHT-107-01-L-D-SM-K-TR	Solder	3.05 mm	0.12 in	Surface Mount	Keying Slot Pick and Place	0.079 in	2 mm	15 µin	0.38 µm	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm
Samtec Inc. EHT-107-01-L-D-SM-LC	Solder	3.05 mm	0.12 in	Surface Mount	Board Lock Keying Slot	0.079 in	2 mm	15 µin	0.38 µm	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm
Samtec Inc. EHT-107-01-S-D-SM-P-TR	Solder	3.05 mm	0.12 in	Surface Mount	Keying Slot Pick and Place	0.079 in	2 mm	30 Áin	0.76 Ám	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm
Samtec Inc. EHT-107-01-L-D-SR	Solder	3.05 mm	0.12 in	Through Hole	Keying Slot Strain Relief	0.079 in	2 mm	15 µin	0.38 µm	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Tin	Square	-55 °C	125 °C	Black	2	14	0.37 in	9.4 mm	3 A	UL94 V-0	Board to Cable/Wire	Gold	Male Pin	0.079 in	2 mm	0.114 in	2.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	19	$ 13.19

Description

General part information

EHT-107 Series

Connector Header Surface Mount 14 position 0.079" (2.00mm)
