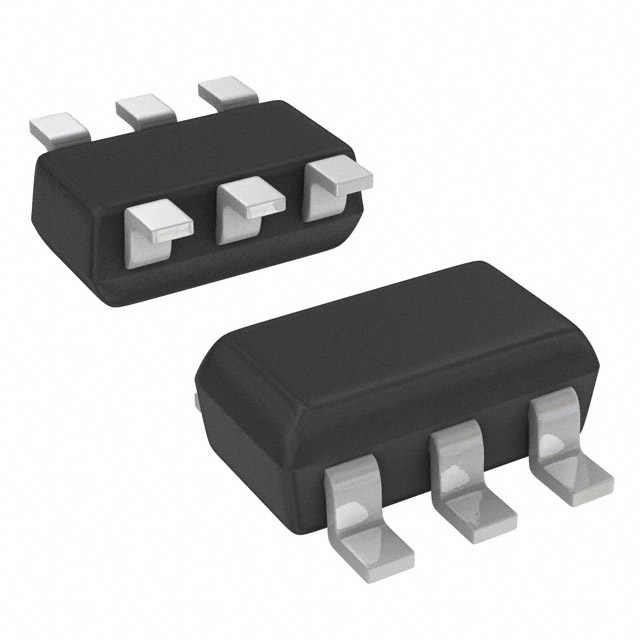

DCX123JK-7-F

Active

Diodes Inc

TRANS DIGITAL BJT NPN/PNP 100MA 6-PIN SC-74R T/R

Search across all available documentation for this part.

Active

Diodes Inc

TRANS DIGITAL BJT NPN/PNP 100MA 6-PIN SC-74R T/R

Technical Specifications

Parameters and characteristics for this part

Specification	DCX123JK-7-F

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	80
Frequency - Transition	250 MHz
Mounting Type	Surface Mount
Package / Case	SC-74, SOT-457
Power - Max [Max]	300 mW
Resistor - Base (R1)	2.2 kOhm
Resistor - Emitter Base (R2)	47000 Ohms
Supplier Device Package	SC-74R
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Complementary, 50V, 0.1A, SOT563

Part	Mounting Type	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Resistor - Emitter Base (R2)	Transistor Type	Package / Case	Supplier Device Package	Resistor - Base (R1)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]
Diodes Inc DCX123JK-7-F	Surface Mount	250 MHz	300 mV	500 nA	100 mA	47000 Ohms	1 NPN 1 PNP	SC-74 SOT-457	SC-74R	2.2 kOhm	80	50 V	300 mW
Diodes Inc DCX123JH-7	Surface Mount	250 MHz	300 mV	500 nA	100 mA	47000 Ohms	1 NPN 1 PNP	SOT-563 SOT-666	SOT-563	2.2 kOhm	80	50 V
