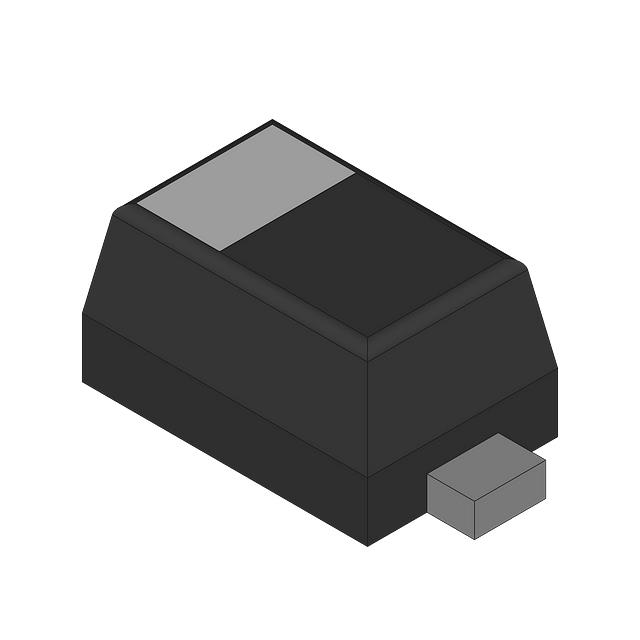

BZX585-B62,115
ActiveFreescale Semiconductor - NXP
NEXPERIA BZX585-B62 - ZENER DIOD
Deep-Dive with AI
Search across all available documentation for this part.
BZX585-B62,115
ActiveFreescale Semiconductor - NXP
NEXPERIA BZX585-B62 - ZENER DIOD
Technical Specifications
Parameters and characteristics for this part
| Specification | BZX585-B62,115 |
|---|---|
| Current - Reverse Leakage @ Vr | 50 nA |
| Impedance (Max) (Zzt) [Max] | 215 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Tolerance | 2 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10645 | $ 0.03 | |
| Tape & Reel (TR) | 3000 | $ 0.04 | ||
| 6000 | $ 0.04 | |||
| 9000 | $ 0.04 | |||
| 15000 | $ 0.03 | |||
| 21000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 75000 | $ 0.03 | |||
| 150000 | $ 0.03 | |||
Description
General part information
BZX585-B62 Series
Low-power voltage regulator diodes encapsulated in an ultra small SOD523 plastic SMD package.
