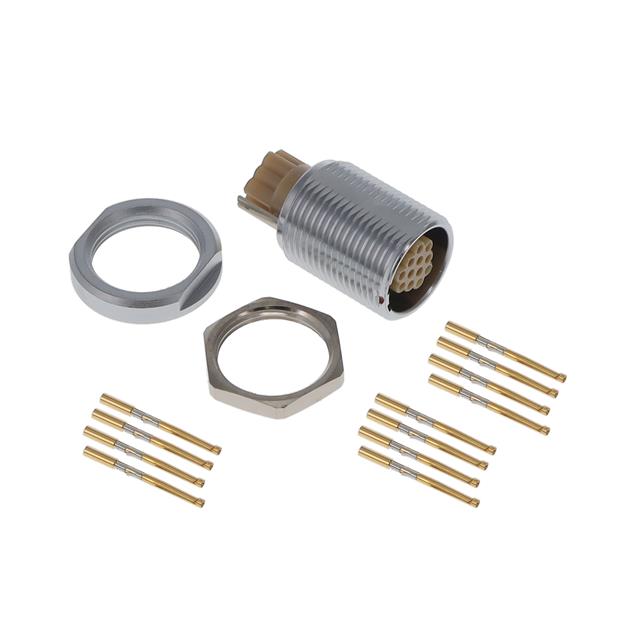

G52LAC-P12NFG2-000L
ActiveODU
PANEL RECEPTACLE, STY G5, SER L,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsIEC 60601-1 MINI-SNAP Features
G52LAC-P12NFG2-000L
ActiveODU
PANEL RECEPTACLE, STY G5, SER L,
Deep-Dive with AI
DocumentsIEC 60601-1 MINI-SNAP Features
Technical Specifications
Parameters and characteristics for this part
| Specification | G52LAC-P12NFG2-000L |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Medical (IEC 60601 (2 MOOP/2 MOPP)) |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Number of Positions | 12 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 2 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 48 VDC |
G52LAC-P Series
| Part | Fastening Type | Insert Material | Shell Material | Primary Material | Shielding | Applications | Mounting Type | Contact Finish - Mating | Features | Color | Connector Type | Current Rating (Amps) | Contact Material | Number of Positions | Mounting Feature | Orientation | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Shell Size - Insert | Termination | Shell Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Panel Mount Through Hole | Gold | Ground | Silver | Receptacle Female Sockets | 7.5 A | Brass | 8 | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 500 V | 2 | Solder | Chrome over Nickel | ||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Ground | Silver | Receptacle Female Sockets | 16 A | Brass | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 800 V | 2 | Chrome over Nickel | |||||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Panel Mount Through Hole | Gold | Ground | Silver | Receptacle Female Sockets | 6 A | Brass | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 366 V | 2 | Solder | Chrome over Nickel | 16 | ||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Ground | Silver | Receptacle Female Sockets | 16 A | Brass | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 800 V | 2 | Chrome over Nickel | |||||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Shielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Medical (IEC 60601 (2 MOOP/2 MOPP)) | Silver | Receptacle Female Sockets | 7.5 A | Brass | 12 | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 48 VDC | 2 | Crimp | Chrome over Nickel | |||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Panel Mount Through Hole | Gold | Ground | Silver | Receptacle Female Sockets | 18 A | Brass | 2 | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 700 VDC | 2 | Solder | Chrome over Nickel | ||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Ground | Silver | Receptacle Female Sockets | 7.5 A | Brass | 19 | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 300 VDC | 2 | Chrome over Nickel | ||||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Ground | Silver | Receptacle Female Sockets | 24 A | Brass | 2 | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 600 V | 2 | Chrome over Nickel | ||||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Ground | Silver | Receptacle Female Sockets | 12 A | Brass | 4 | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 650 V | 2 | Chrome over Nickel | ||||
Push-Pull | Polyetheretherketone (PEEK) | Brass | Metal | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Ground | Silver | Receptacle Female Sockets | 7.5 A | Brass | 10 | Bulkhead - Front or Rear Side Nut | A | IP50 | -40 °C | 120 °C | 500 V | 2 | Chrome over Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 104.84 | |
| 10 | $ 96.21 | |||
| 100 | $ 84.49 | |||
Description
General part information
G52LAC-P Series
12 Position Circular Connector Receptacle, Female Sockets Crimp
