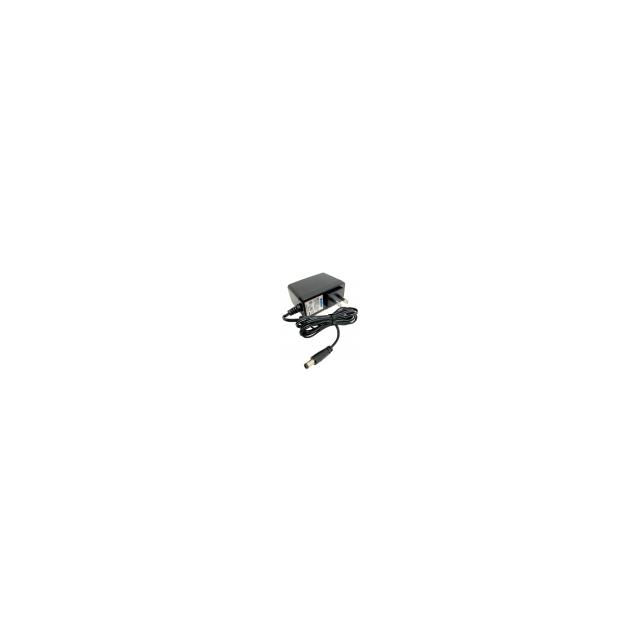

AMA24UR4-050300Y

Active

aimtec

AC/DC WALL MOUNT ADAPTER 5V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMA24UR4-050300Y

Active

aimtec

AC/DC WALL MOUNT ADAPTER 5V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMA24UR4-050300Y

Applications	ITE (Commercial)
Approval Agency	UL, CE
Cord Length	60.2 in
Cord Length	1.5 m
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	North America
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.83 "
Size / Dimension [y]	1.34 in
Size / Dimension [y]	34 mm
Size / Dimension [z]	73 mm
Size / Dimension [z]	2.87 "
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	130 g
Weight	0.287 lb

AMA24 Series

Part	Approval Agency	Power (Watts)	Weight	Weight	Input Connector	Efficiency	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Cord Length	Cord Length	Standard Number	Form	Polarization	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Voltage - Output	No Load Power Consumption	Operating Temperature [Max]
aimtec AMA24UR4-120200Y	CE UL	24 W	130 g	0.287 lb	NEMA 1-15P	Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	60.2 in	1.5 m	60950-1 62368-1	Wall Mount (Class II)	Positive Center	ITE (Commercial)	1.34 in	72 mm	73 mm	34 mm	2.87 "	2.83 "	2 A	90 VAC	264 VAC	Fixed Blade	12 V	100 mW	40 °C
aimtec AMA24UR4-050300Y	CE UL	15 W	130 g	0.287 lb	NEMA 1-15P	Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	60.2 in	1.5 m	60950-1 62368-1	Wall Mount (Class II)	Positive Center	ITE (Commercial)	1.34 in	72 mm	73 mm	34 mm	2.87 "	2.83 "	3 A	90 VAC	264 VAC	Fixed Blade	5 V	100 mW	40 °C
aimtec AMA24DR4-120150Y	CE UL	18 W	140 g	0.309 lb	IEC 320-C8	Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	International	60.2 in	1.5 m	62368-1	Desktop (Class II)	Positive Center	ITE (Commercial)	1.97 "	90 mm	33.9 mm	50 mm	1.33 "	3.54 in	1.5 A	90 VAC	264 VAC	Cord	12 V	100 mW	40 °C
aimtec AMA24UR5-120200Y	CE FCC UL	24 W	130 g	0.287 lb	NEMA 1-15P	Level VI	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	North America	60.2 in	1.5 m	60950-1 62368-1	Wall Mount (Class II)	Positive Center	ITE (Commercial)	1.34 in	72 mm	73 mm	34 mm	2.87 "	2.83 "	2 A	90 VAC	264 VAC	Fixed Blade	12 V	100 mW	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.64
		10	$ 12.87
		25	$ 12.22
		50	$ 11.76
		100	$ 11.31
		250	$ 10.74
		500	$ 10.34
		1000	$ 9.94

Description

General part information

AMA24 Series

5V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
