CIRHSE06T36A22PCNF80M32V0
ActiveTE Connectivity AMP Connectors

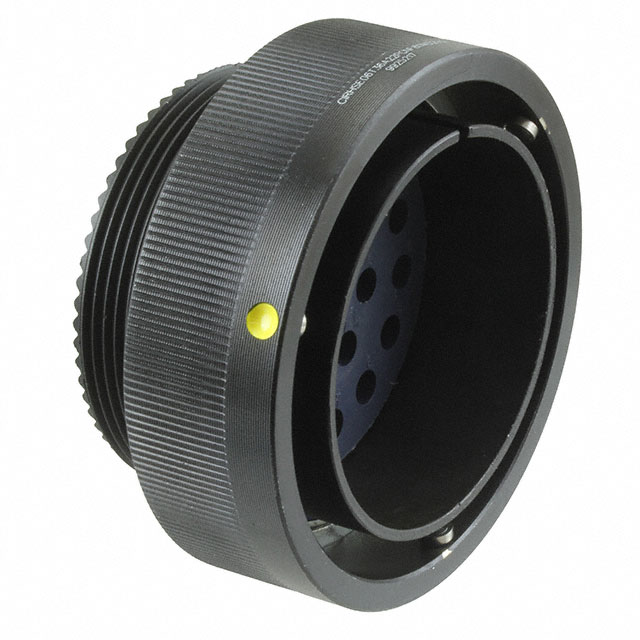

CONN PLUG HSG MALE 22POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CIRHSE06T36A22PCNF80M32V0
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG MALE 22POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIRHSE06T36A22PCNF80M32V0 | CIRHSE06 Series |
|---|---|---|
| Connector Type | Plug Housing | Plug Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 12 | 8 - 16 |
| Contact Size | - | 16S |
| Contact Type | Crimp | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut | Coupling Nut |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Rubber, Halogen Free | Rubber, Halogen Free |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 22 positions | 6 - 60 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Shell Finish | Zinc Cobalt | Zinc Cobalt |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 36-A22 | 40-A35, 16S-1, 18-11, 36-A22, 32-A13, 36-10, 40-A60, 22-14, 18-12, 14S-6 |
| Shell Size - Insert | - | 18 - 32 |
| Shell Size - Insert | - | 10 - 76 |
| Shielding | Shielded | Shielded |
| Type | For Male Pins | For Male Pins, For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.15 | |
CIRHSE06 Series
CONN PLUG HSG MALE 35POS INLINE
| Part | Contact Size | Type | Contact Shape | Fastening Type | Note | Connector Type | Features | Shielding | Housing Color | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Shell Finish | Ingress Protection | Orientation | Number of Positions | Insert Material | Shell Material | Contact Size | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CIRHSE06T40A35PCNF80M32V0 | 12 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 40-A35 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 35 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T16S1SCNF80M32V0 | For Female Sockets | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 16S-1 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 7 | Rubber, Halogen Free | Aluminum Alloy | 16S | |||
TE Connectivity AMP Connectors CIRHSE06T2410SCNF80M32V0 | 8 | For Female Sockets | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 7 | Rubber, Halogen Free | Aluminum Alloy | 24 | 10 | ||
TE Connectivity AMP Connectors CIRHSE06T16S1PCNF80M32V0 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 16S-1 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 7 | Rubber, Halogen Free | Aluminum Alloy | 16S | |||
TE Connectivity AMP Connectors CIRHSE06T1811SCNF80M32V0 | 12 | For Female Sockets | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 18-11 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | Rubber, Halogen Free | Aluminum Alloy | ||||
TE Connectivity AMP Connectors CIRHSE06T36A22PCNF80M32V0 | 12 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 36-A22 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 22 positions | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T3276PCNF80M32V0 | 12 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 19 | Rubber, Halogen Free | Aluminum Alloy | 32 | 76 | ||
TE Connectivity AMP Connectors CIRHSE06T2015PCNF80M32V0 | 12 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 7 | Rubber, Halogen Free | Aluminum Alloy | 20 | 15 | ||
TE Connectivity AMP Connectors CIRHSE06T32A13SCNF80M32V0 | 12 | For Female Sockets | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 32-A13 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 13 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T3610PCNF80M32V0 | 16 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 36-10 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 48 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T40A60PCNF80M32V0 | 16 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 40-A60 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 60 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T32A13PCNF80M32V0 | 12 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 32-A13 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 13 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T2214SCNF80M32V0 | 16 | For Female Sockets | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 22-14 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 19 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T1812SCNF80M32V0 | 16 | For Female Sockets | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 18-12 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 6 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T1819PCNF80M32V0 | 16 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 10 | Rubber, Halogen Free | Aluminum Alloy | 18 | 19 | ||
TE Connectivity AMP Connectors CIRHSE06T3610SCNF80M32V0 | 16 | For Female Sockets | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 36-10 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 48 | Rubber, Halogen Free | Aluminum Alloy | |||
TE Connectivity AMP Connectors CIRHSE06T14S6PCNF80M32V0 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | 14S-6 | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 6 | Rubber, Halogen Free | Aluminum Alloy | 16S | |||
TE Connectivity AMP Connectors CIRHSE06T2410PCNF80M32V0 | 8 | For Male Pins | Circular | Bayonet Lock | Contacts Not Included | Plug Housing | Coupling Nut | Shielded | Black | Crimp | Free Hanging (In-Line) | -55 °C | 200 °C | Zinc Cobalt | IP67 - Dust Tight, Waterproof | N | 7 | Rubber, Halogen Free | Aluminum Alloy | 24 | 10 |
Description
General part information
CIRHSE06 Series
22 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
