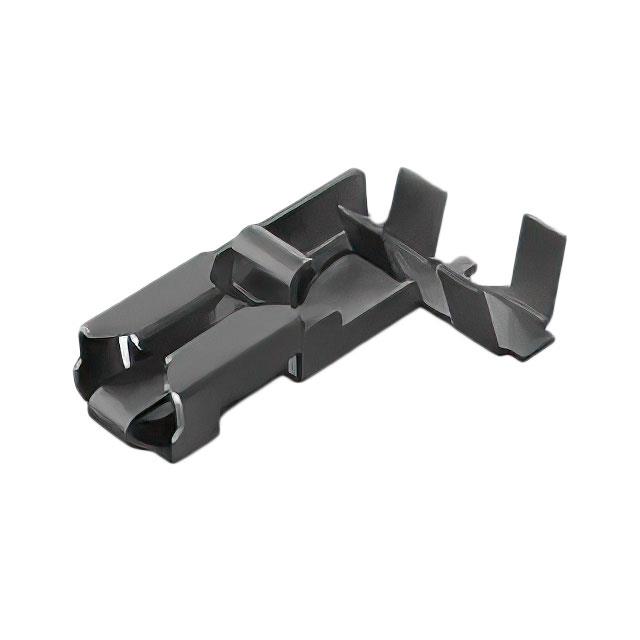

965972-1
ActiveTE Connectivity AMP Connectors
POSLOCK REC. 6,3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
965972-1
ActiveTE Connectivity AMP Connectors
POSLOCK REC. 6,3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 965972-1 | 965972 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
| Gender | Female | Female |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter | 4.29 mm, 3 mm | 3 - 4.29 mm |
| Insulation Diameter [Max] | 0.169 in | 0.169 in |
| Insulation Diameter [Min] | 0.118 in | 0.118 in |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Flag, Angled - 90° | Flag, Angled - 90° |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 17 AWG | 17 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.22 | |||
| Tape & Reel (TR) | 72000 | $ 0.18 | ||
965972 Series
POSLOCK FA-STE-H6,3
| Part | Terminal Type | Gender | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter | Contact Material | Tab Width | Tab Width | Termination | Insulation | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 965972-5 | Angled - 90°, Flag | Female | 14 AWG | 17 AWG | Free Hanging (In-Line), Right Angle | 0.169 in | 0.118 in | 3 mm, 4.29 mm | Brass | 6.35 mm | 0.25 in | Crimp | Non-Insulated | |
TE Connectivity AMP Connectors 965972-1 | Angled - 90°, Flag | Female | 14 AWG | 17 AWG | Free Hanging (In-Line), Right Angle | 0.169 in | 0.118 in | 3 mm, 4.29 mm | Brass | 6.35 mm | 0.25 in | Crimp | Non-Insulated | Tin |
Description
General part information
965972 Series
0.250" (6.35mm) Quick Connect Female 14-17 AWG Crimp Connector Non-Insulated
