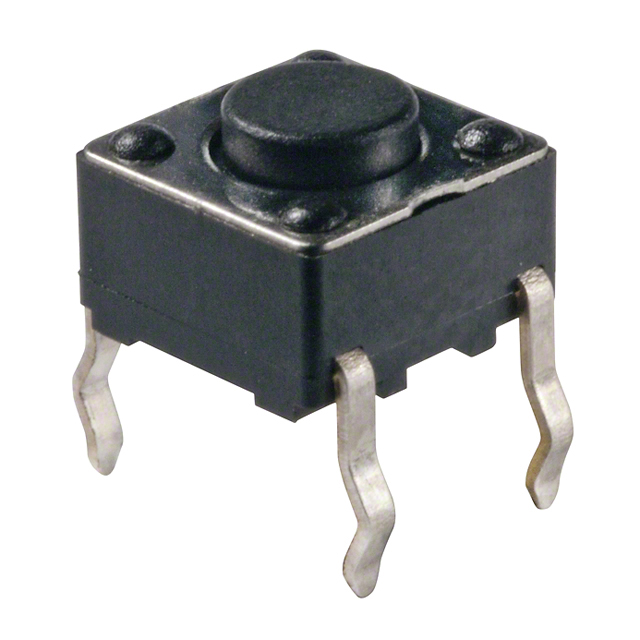

HP0215AFKP2

Active

NKK Switches

TACTILE SWITCH, HP02 SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 160 GF, 125MA AT 28VDC

Search across all available documentation for this part.

Active

NKK Switches

TACTILE SWITCH, HP02 SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 160 GF, 125MA AT 28VDC

Technical Specifications

Parameters and characteristics for this part

Specification	HP0215AFKP2

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage [custom]	3 VA
Contact Rating @ Voltage [custom]	28 VDC
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

Part	Actuator Material	Actuator Height off PCB, Vertical [z]	Circuit	Illumination	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Travel	Actuator Orientation	Outline [y]	Outline [x]	Actuator Type	Features	Termination Style	Mechanical Life	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
NKK Switches HP0215AFKP4-S	Glass Filled Nylon Polyamide (PA)	4.3 mm	SPST-NO	Non-Illuminated	Off-Mom	-20 C	70 °C	Through Hole	0.2 mm	Top Actuated	6.2 mm	6.2 mm	Standard	Sealed - Flux Protection	PC Pin	500000 Cycles
NKK Switches HP0215AFKP4	Glass Filled Nylon Polyamide (PA)	4.3 mm	SPST-NO	Non-Illuminated	Off-Mom	-20 C	70 °C	Through Hole	0.2 mm	Top Actuated	6.2 mm	6.2 mm	Standard	Sealed - Flux Protection	PC Pin	500000 Cycles
NKK Switches HP0215AFKP2	Glass Filled Nylon Polyamide (PA)	4.3 mm	SPST-NO	Non-Illuminated	Off-Mom	-20 C	70 °C	Through Hole	0.2 mm	Top Actuated	6.2 mm	6.2 mm	Standard	Sealed - Flux Protection	PC Pin	500000 Cycles	3 VA	28 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
