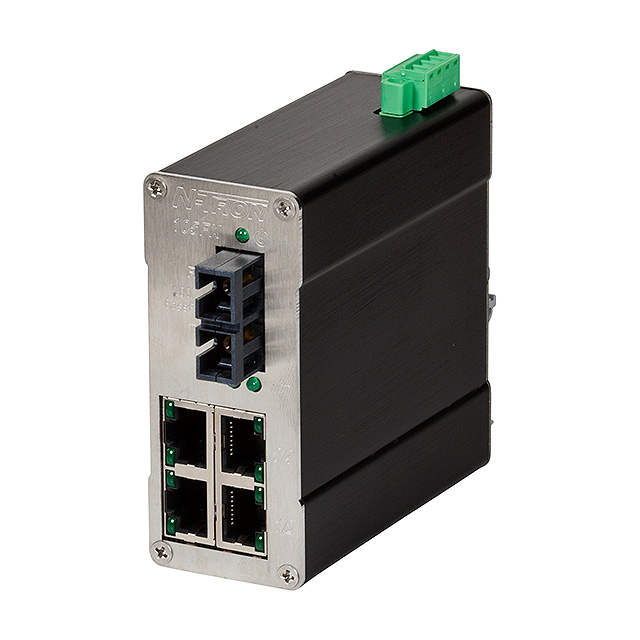

105FX-SC

Active

RED LION CONTROLS

5 PORT (4 10/100BASETX, 1 100BASE FIBER UPLINK) INDUSTRIAL ETHERNET SWITCH, DIN-RAIL (MULTIMODE, SC STYLE CONNECTOR) ROHS COMPLI

Search across all available documentation for this part.

Active

RED LION CONTROLS

5 PORT (4 10/100BASETX, 1 100BASE FIBER UPLINK) INDUSTRIAL ETHERNET SWITCH, DIN-RAIL (MULTIMODE, SC STYLE CONNECTOR) ROHS COMPLI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	105FX-SC	105FX Series

Configuration	Fixed	Fixed
Connector Type	RJ45, SC	RJ45, SC
Copper Ports	4	4
Copper Type	10/100	10/100
Fiber Ports	1	1
Fiber Type	100BASE-FX (Multimode)	100BASE-FX (Singlemode), 100BASE-FX (Multimode)
Mounting Type	DIN Rail	DIN Rail
Number of Ports	5	5
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
PoE Ports	-	4
Type	Switch - Unmanaged	Switch - Unmanaged
Voltage - Input [Max]	49 V	49 V
Voltage - Input [Min]	46 V	46 V

NETWORK SWITCH-UNMANAGED 5 PORT

Part	Voltage - Input [Min]	Voltage - Input [Max]	Connector Type	Copper Ports	Configuration	Fiber Ports	Copper Type	Mounting Type	PoE Ports	Type	Operating Temperature [Max]	Operating Temperature [Min]	Fiber Type	Number of Ports
RED LION CONTROLS 105FXE-SC-80-POE-MDR	46 V	49 V	RJ45, SC	4	Fixed	1	10/100	DIN Rail	4	Switch - Unmanaged	85 °C	-40 °C	100BASE-FX (Singlemode)	5
RED LION CONTROLS 105FX-SC	46 V	49 V	RJ45, SC	4	Fixed	1	10/100	DIN Rail		Switch - Unmanaged	70 °C	-40 °C	100BASE-FX (Multimode)	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 299.00
Newark	Each	1	$ 311.00

General part information

Network Switch - Unmanaged 5 Ports
