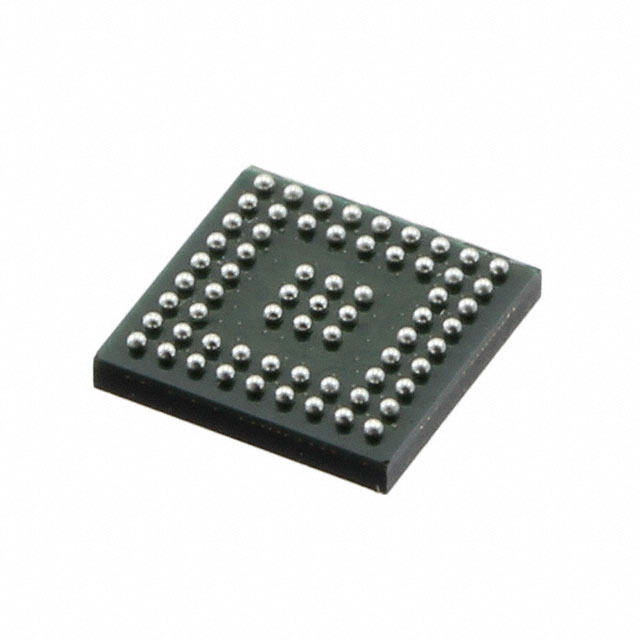

CS42L73-CRZ

Obsolete

Cirrus Logic Inc.

IC CODEC AUD TELEPHONY 64WLCSP

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC CODEC AUD TELEPHONY 64WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	CS42L73-CRZ

Data Interface	Serial, I2C
Dynamic Range, ADCs / DACs (db) Typ [custom]	94 db
Dynamic Range, ADCs / DACs (db) Typ [custom]	91 db
Mounting Type	Surface Mount
Number of ADCs / DACs [custom]	2
Number of ADCs / DACs [custom]	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	65-VFBGA
Resolution (Bits)	24 b
Sigma Delta	False
Supplier Device Package	65-FBGA (5x5)
Type	Audio
Voltage - Supply, Analog [Max]	5.25 V
Voltage - Supply, Analog [Min]	3 V
Voltage - Supply, Digital [Max]	5.5 V
Voltage - Supply, Digital [Min]	3 V

Part	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Type	Package / Case	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Dynamic Range, ADCs / DACs (db) Typ [custom]	Dynamic Range, ADCs / DACs (db) Typ [custom]	Data Interface	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Sigma Delta	Supplier Device Package	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Resolution (Bits)
Cirrus Logic Inc. CS42L73-CWZR	5.25 V	3 V	Audio	64-WLCSP	2	1	94 db	91 db	I2C Serial	5.25 V	3 V	Surface Mount	85 °C	-40 °C		64-WLCSP
Cirrus Logic Inc. CS42L73-CRZ	5.25 V	3 V	Audio	65-VFBGA			94 db	91 db	I2C Serial	5.5 V	3 V	Surface Mount	85 °C	-40 °C		65-FBGA (5x5)	2	1	24 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Audio Interface 24 b I2C, Serial 65-FBGA (5x5)

Technical documentation and resources

No documents available
