Q-2I0520005108i

Active

Amphenol Custom Cable

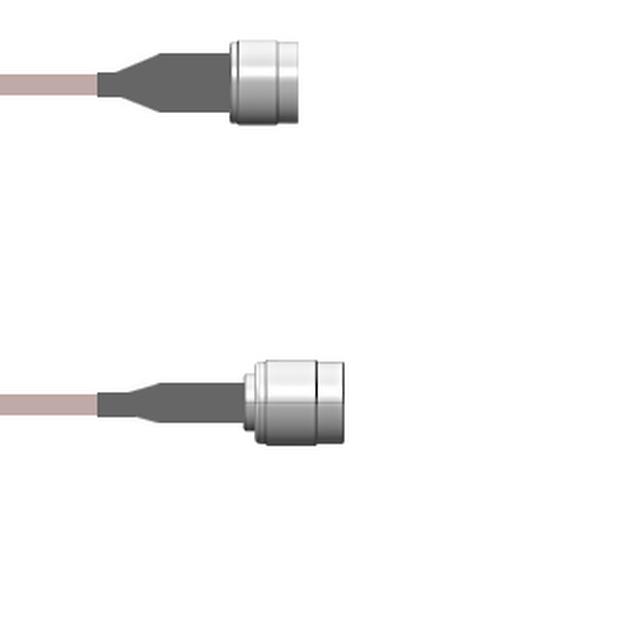

COAX CBL N-TYPE TO TNC 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I0520005108i

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I0520005108i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms

Q-2I0520 Series

Part	1st Connector Mounting Type	Cable Type	2nd Connector	Color	Features	Length	Length	2nd Contact Gender	2nd Connector Mounting Type	1st Contact Gender	Overall Impedance	Frequency - Max [Max]	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2I0520005024i	Free Hanging (In-Line)	RG-316	TNC Plug	Copper	Shielded	24 "	609.6 mm	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I0520005108i	Free Hanging (In-Line)	RG-316	TNC Plug	Copper	Shielded	108 in	2.7 m	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz	9 ft
Amphenol Custom Cable Q-2I0520003018i	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded			Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I0520003001M	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded	39.4 in	1 m	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz	3.3 ft
Amphenol Custom Cable Q-2I05200030.5M	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded	19.69 "	50 cm	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I0520003.75M	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded	29.53 "	750 mm	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I0520003024i	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded	24 "	609.6 mm	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I0520003009i	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded	9 "	228.6 mm	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I0520003036i	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded	36 in	91.44 cm	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz
Amphenol Custom Cable Q-2I0520003002M	Free Hanging (In-Line)	RG-174	TNC Plug	Black	Shielded	78.7 in	2 m	Male	Free Hanging (In-Line)	Male	50 Ohms	11 GHz	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 106.18
		25	$ 104.09
		50	$ 102.00
		100	$ 99.90
		250	$ 97.81

Description

General part information

Q-2I0520 Series

Cable Assembly Coaxial N-Type to TNC RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
