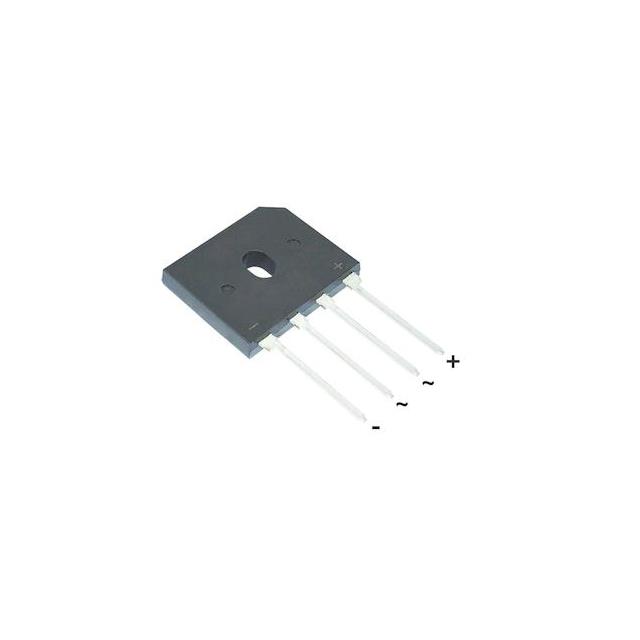

GBU606GL

Active

SMC Diode Solutions

600V, 6A, GBU, BRIDGE RECTIFIERS

Search across all available documentation for this part.

Active

SMC Diode Solutions

600V, 6A, GBU, BRIDGE RECTIFIERS

Technical Specifications

Parameters and characteristics for this part

Specification	GBU606GL

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-ESIP
Supplier Device Package	GBU
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Technology	Package / Case	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]
SMC Diode Solutions GBU606	5 µA	GBU	1.1 V	600 V	6 A	Through Hole	Standard	4-ESIP	Single Phase	-55 °C	150 °C
SMC Diode Solutions GBU606GL	5 µA	GBU	1.1 V	600 V	6 A	Through Hole	Standard	4-ESIP	Single Phase	-55 °C	150 °C
SMC Diode Solutions GBU606G	5 µA	GBU	1.1 V	600 V	6 A	Through Hole	Standard	4-ESIP	Single Phase	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole GBU
