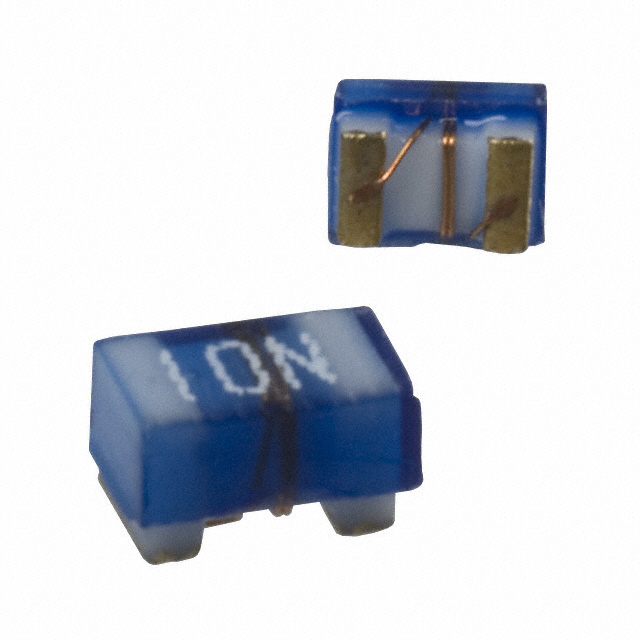

PM0603-27NJ

Obsolete

Bourns Inc.

FIXED IND 27NH 700MA 230MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM0603-27NJ

Obsolete

Bourns Inc.

FIXED IND 27NH 700MA 230MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM0603-27NJ

Current Rating (Amps)	700 mA
DC Resistance (DCR)	230 mOhm
Frequency - Self Resonant	2.8 GHz
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Inductance	27 nH
Inductance Frequency - Test	250 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 (1608 Metric)
Q @ Freq	250 MHz, 40
Shielding	Unshielded
Size / Dimension [x]	1.65 mm, 0.065 in
Size / Dimension [y]	0.041 in, 1.05 mm
Supplier Device Package	1608 Metric
Supplier Device Package	0603
Tolerance	5 %
Type	Wirewound, Drum Core

PM0603 Series

Part	Shielding	Supplier Device Package	Supplier Device Package	Mounting Type	Tolerance	Inductance Frequency - Test	Q @ Freq	Type	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Package / Case	Current Rating (Amps)	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. PM0603-R22J	Unshielded	1608 Metric	0603	Surface Mount	5 %	100 MHz	30 100 MHz	Drum Core Wirewound	2.1 Ohm	125 °C	-40 °C	990 MHz	0603 (1608 Metric)	0.2 A	Ceramic	1.2 mm	0.047 in	220 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-22NJ	Unshielded	1608 Metric	0603	Surface Mount	5 %	250 MHz	38 250 MHz	Drum Core Wirewound	190 mOhm	125 °C	-40 °C	3 GHz	0603 (1608 Metric)	700 mA	Ceramic	1.2 mm	0.047 in	22 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-R27J	Unshielded	1608 Metric	0603	Surface Mount	5 %	100 MHz	30 100 MHz	Drum Core Wirewound	2.3 Ohm	125 °C	-40 °C	990 MHz	0603 (1608 Metric)	0.17 A	Ceramic	1.2 mm	0.047 in	270 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-27NJ	Unshielded	1608 Metric	0603	Surface Mount	5 %	250 MHz	40 250 MHz	Drum Core Wirewound	230 mOhm	125 °C	-40 °C	2.8 GHz	0603 (1608 Metric)	700 mA	Ceramic	1.2 mm	0.047 in	27 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-33NJ	Unshielded	1608 Metric	0603	Surface Mount	5 %	250 MHz	43 250 MHz	Drum Core Wirewound	230 mOhm	125 °C	-40 °C	2.3 GHz	0603 (1608 Metric)	600 mA	Ceramic	1.2 mm	0.047 in	33 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-R10J	Unshielded	1608 Metric	0603	Surface Mount	5 %	150 MHz	35 150 MHz	Drum Core Wirewound	580 mOhm	125 °C	-40 °C	1.4 GHz	0603 (1608 Metric)	400 mA	Ceramic	1.2 mm	0.047 in	100 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-R18J-RC	Unshielded	1608 Metric	0603	Surface Mount	5 %	100 MHz	25 100 MHz	Drum Core Wirewound	1.25 Ohm	125 °C	-40 °C	990 MHz	0603 (1608 Metric)	0.24 A	Alumina	1.2 mm	0.047 in	180 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-10NJ-RC	Unshielded	1608 Metric	0603	Surface Mount	5 %	250 MHz	30 250 MHz	Drum Core Wirewound	130 mOhm	125 °C	-40 °C	4.8 GHz	0603 (1608 Metric)	700 mA	Alumina	1.2 mm	0.047 in	10 nH	0.041 in 1.05 mm	0.065 in 1.65 mm
Bourns Inc. PM0603-2N2D-RC	Unshielded	1608 Metric	0603	Surface Mount	0.3 nH	250 MHz	16 250 MHz	Drum Core Wirewound	80 mOhm	125 °C	-40 °C	6 GHz	0603 (1608 Metric)	700 mA	Alumina	1.02 mm			1.15 mm	1.6 mm	0.04 "	0.045 in	0.063 in
Bourns Inc. PM0603-R12J	Unshielded	1608 Metric	0603	Surface Mount	5 %	150 MHz	35 150 MHz	Drum Core Wirewound	650 mOhm	125 °C	-40 °C	1.3 GHz	0603 (1608 Metric)	300 mA	Ceramic	1.2 mm	0.047 in	120 nH	0.041 in 1.05 mm	0.065 in 1.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PM0603 Series

27 nH Unshielded Drum Core, Wirewound Inductor 700 mA 230mOhm 0603 (1608 Metric)
