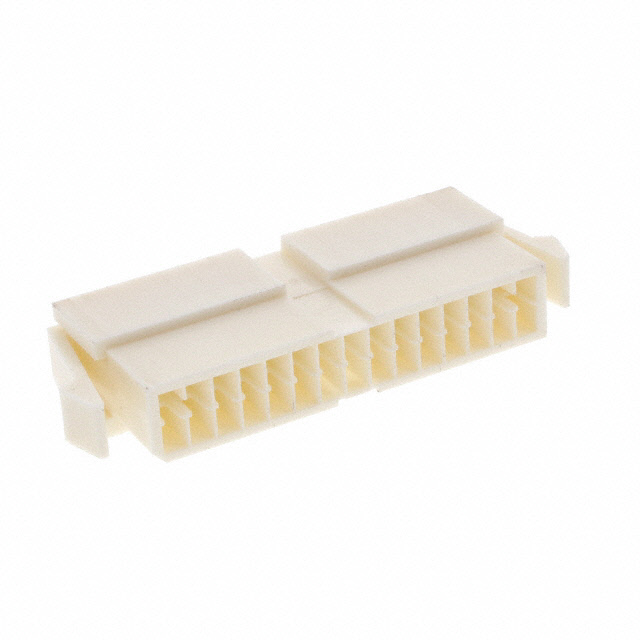

IPR1-15-D
ActiveSamtec Inc.
CONN HSG 30POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
IPR1-15-D
ActiveSamtec Inc.
CONN HSG 30POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPR1-15-D |
|---|---|
| Color | Natural |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.62 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.80 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.40 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.21 | |||
| 2500 | $ 1.10 | |||
Description
General part information
IPR1-15 Series
30 Rectangular Connectors - Housings Natural 0.100" (2.54mm)
