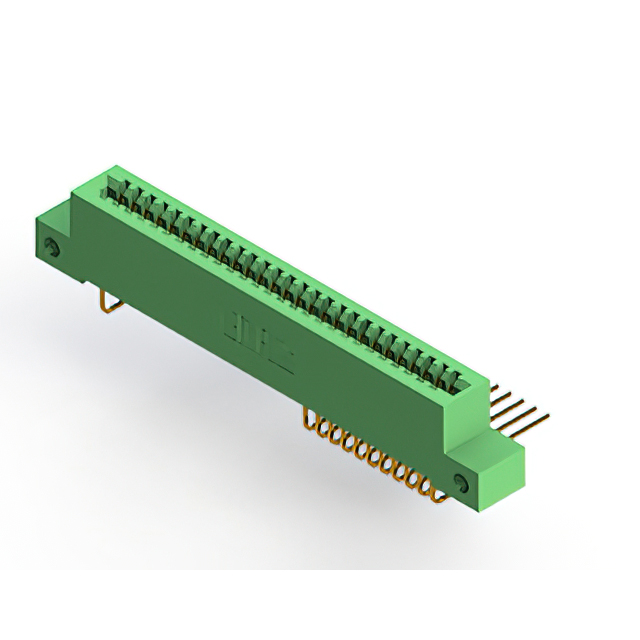

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 54 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
342-054-559-212
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 54 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-054-559-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
342-054 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Termination | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Type | Contact Material | Features | Number of Positions | Material - Insulation | Gender | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Number of Positions/Bay/Row [custom] | Number of Rows | Contact Finish | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Cantilever | Copper Alloy | Card Extender | 54 | Polyester Thermoplastic | Female | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Dual | 27 | 2 | Gold | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Copper Alloy | 54 | Polyester Thermoplastic | Female | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Single | 1 | Gold | 54 | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Copper Alloy | 54 | Polyester Thermoplastic | Female | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 27 | 2 | Gold | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Copper Alloy | 54 | Polyester Thermoplastic | Female | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Single | 1 | Gold | 54 | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Cantilever | Copper Alloy | Card Extender | 54 | Polyester Thermoplastic | Female | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | Dual | 27 | 2 | Gold | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Copper Alloy | 54 | Polyester Thermoplastic | Female | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 27 | 2 | Gold | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Wire Wrap | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Copper Alloy | 54 | Polyester Thermoplastic | Female | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | 27 | 2 | Gold | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Copper Alloy | 54 | Polyester Thermoplastic | Female | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | Single | 1 | Gold | 54 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder Wire Wrap | 10 Áin | 0.25 Ám | Through Hole Right Angle | Cantilever | Copper Alloy | 54 | Polyester Thermoplastic | Female | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | 27 | 2 | Gold | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Cantilever | Copper Alloy | Card Extender | 54 | Polyester Thermoplastic | Female | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | 27 | 2 | Gold |
