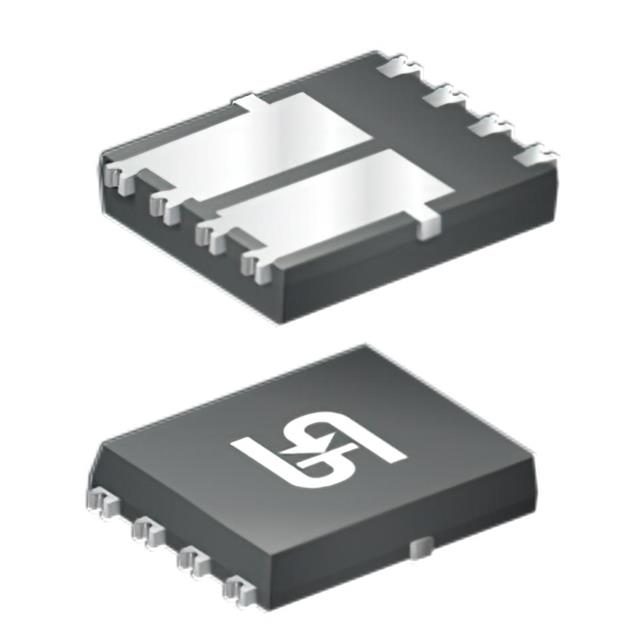

TQM076NH04DCR RLG

Active

Taiwan Semiconductor Corporation

MOSFET 2N-CH 40V 15A/40A 8PDFNU

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

MOSFET 2N-CH 40V 15A/40A 8PDFNU

Technical Specifications

Parameters and characteristics for this part

Specification	TQM076NH04DCR RLG

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	40 A, 15 A
Drain to Source Voltage (Vdss)	40 V
Gate Charge (Qg) (Max) @ Vgs	29 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds [Max]	1850 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power - Max [Max]	55.6 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	7.6 mOhm
Supplier Device Package	8-PDFNU (5x6)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3.6 V

Part	Mounting Type	Supplier Device Package	Package / Case	Grade	Qualification	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs	Power - Max [Max]	Rds On (Max) @ Id, Vgs	Configuration	Current - Continuous Drain (Id) @ 25°C	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id [Max]
Taiwan Semiconductor Corporation TQM076NH04DCR RLG	Surface Mount	8-PDFNU (5x6)	8-PowerTDFN	Automotive	AEC-Q101	1850 pF	29 nC	55.6 W	7.6 mOhm	2 N-Channel (Dual)	15 A 40 A	MOSFET (Metal Oxide)	-55 °C	175 ░C	3.6 V	40 V
Taiwan Semiconductor Corporation TQM076NH04LDCR RLG	Surface Mount	8-PDFN (5x6)	8-PowerTDFN	Automotive	AEC-Q101			55.6 W	7.6 mOhm	2 N-Channel	15 A 40 A	MOSFET (Metal Oxide)	-55 °C	175 ░C		40 V	2006 pF	34 nC	2.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 40V 15A (Ta), 40A (Tc) 55.6W (Tc) Surface Mount 8-PDFNU (5x6)
