6EHG1-2

Active

TE Connectivity Raychem Cable Protection

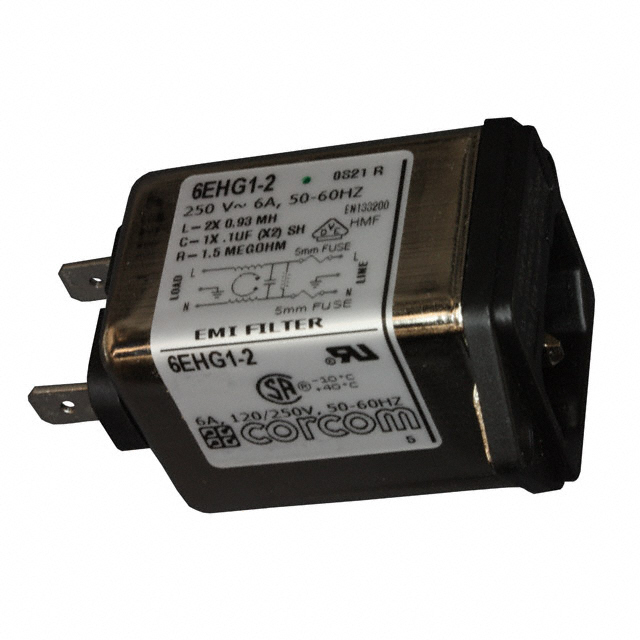

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	6EHG1-2

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.96 mm
Panel Cutout Dimensions [y]	33.02 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

Part	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Fuse Holder, Drawer	Connector Type	Current Rating - Appliance Inlet	Accomodates a Fuse	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Connector Style	Current Rating - Filter	Filter Type	Mounting Type
TE Connectivity Raychem Cable Protection 6EHG1-2	0.25 in	6.3 mm	Quick Connect	33.02 mm	28.96 mm	CSA UL VDE	Fuse Holder Twin Fused	Receptacle Male Blades - Module	6 A		250 VAC	120 VAC	IEC 320-C14	6 A	Filtered (EMI RFI) - Commercial	Flange Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
