181-062-213R531
ActiveMH Connectors

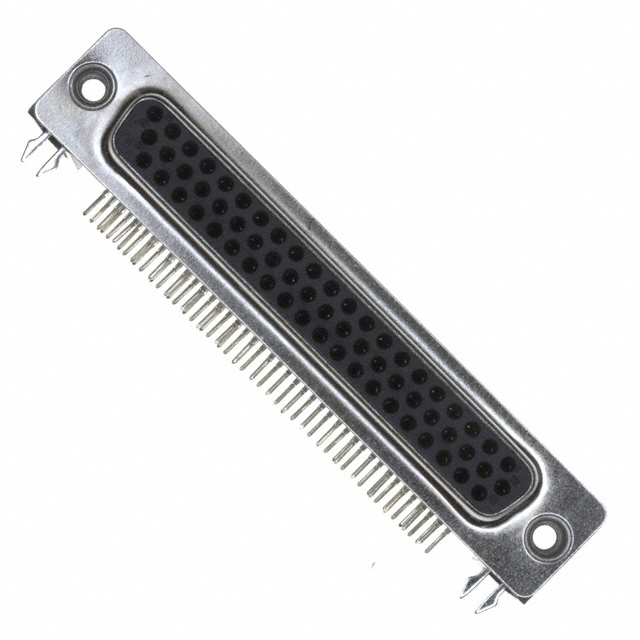

D SUB CONNECTOR, 62 CONTACTS, RECEPTACLE, THROUGH HOLE, DC, 181 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
181-062-213R531
ActiveMH Connectors
D SUB CONNECTOR, 62 CONTACTS, RECEPTACLE, THROUGH HOLE, DC, 181 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 181-062-213R531 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Shielded, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
181-062 Series
| Part | Backset Spacing | Backset Spacing | Contact Finish | Contact Material | Mounting Type | Contact Finish Thickness | Termination | Shell Material, Finish | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Number of Rows | Contact Type | Number of Positions | Color | Connector Style | Features | Voltage Rating | Connector Type | Material Flammability Rating | Shell Size, Connector Layout | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 8.89 mm | 0.35 in | Gold | Brass | Panel Mount Right Angle Through Hole | Flash | Solder | Nickel Plated Steel | 3 A | 105 ░C | -55 °C | Housing/Shell (4-40) | 3 | Signal | 62 | Black | D-Sub High Density | Board Lock Grounding Indents Shielded | 250 VDC | Male Pins Plug | UL94 V-0 | 4 | Polyamide (PA9T) Nylon 9T |
MH Connectors | 8.89 mm | 0.35 in | Gold | Brass | Panel Mount Right Angle Through Hole | Flash | Solder | Nickel Plated Steel | 3 A | 105 ░C | -55 °C | Housing/Shell (4-40) | 3 | Signal | 62 | Black | D-Sub High Density | Ground Strap Shielded | 250 VDC | Receptacle Female Sockets | UL94 V-0 | 4 | Polyamide (PA9T) Nylon 9T |
MH Connectors | 8.89 mm | 0.35 in | Gold | Brass | Panel Mount Right Angle Through Hole | Flash | Solder | Nickel Plated Steel | 3 A | 105 ░C | -55 °C | Housing/Shell (4-40) | 3 | Signal | 62 | Black | D-Sub High Density | Board Lock Shielded | 250 VDC | Receptacle Female Sockets | UL94 V-0 | 4 | Polyamide (PA9T) Nylon 9T |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
181-062 Series
62 Position D-Sub, High Density Receptacle, Female Sockets Connector
