Description
General part information

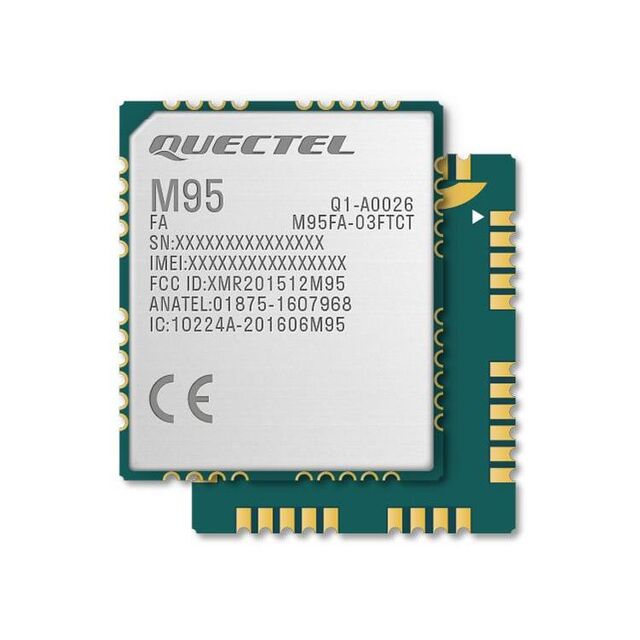

M95 Series
Navigation GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | M95FATEA-03-STDN |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 1.3 mA |
| Data Rate | 85.6 kbps |
| Frequency | 900 MHz, 1.8 GHz, 850 MHz, 1.9 GHz |
| Frequency | 1.8GHz, 850MHz, 1.9GHz, 900MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Protocol | GPRS, GSM |
| RF Family/Standard | Navigation |
| Sensitivity | -109 dBm |
| Serial Interfaces | PCM, UART |
| Voltage - Supply (Maximum) | 4.6 V |
| Voltage - Supply (Minimum) | 3.3 V |
