1-1337469-0

Active

TE Connectivity AMP Connectors

CONN TNC JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TNC JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337469-0

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	Washer, Solder Tag, Nut, Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder Tag
Voltage Rating	500 V

CONN TNC JACK STR 50 OHM SOLDER

Part	Frequency - Max [Max]	Housing Color	Mating Cycles	Number of Ports	Center Contact Plating	Connector Style	Includes	Contact Termination	Connector Type	Dielectric Material	Center Contact Material	Voltage Rating	Impedance	Body Finish	Mounting Feature	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Insertion Loss
TE Connectivity AMP Connectors 1-1337469-0	11 GHz	Silver	500	1	Silver	TNC	Connector, Nut, Solder Tag, Washer	Solder Cup	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Brass	500 V	50 Ohms	Silver	Bulkhead - Rear Side Nut	Solder Tag	-65 ░C	165 °C	Brass	0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

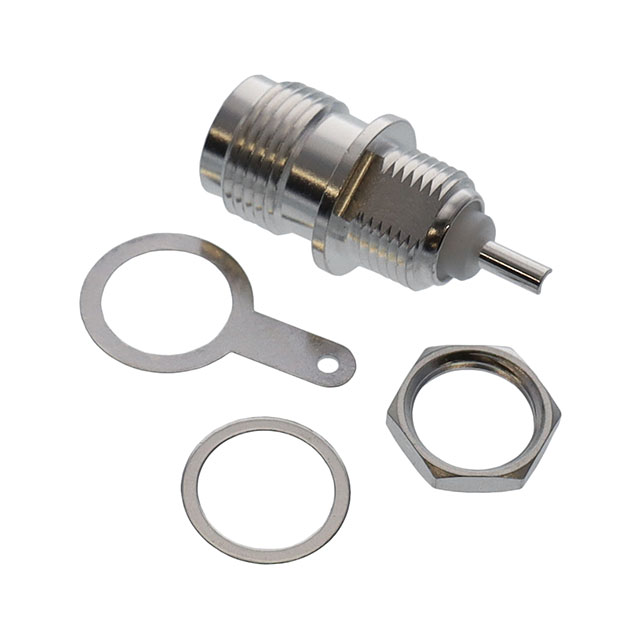

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
