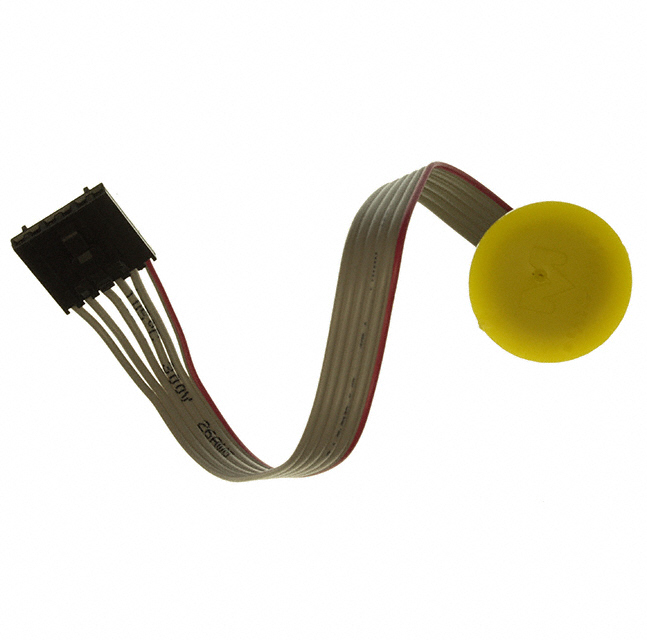

86-300A-C

Active

TE Connectivity Measurement Specialties

SENSOR 300PSIA 0.1V

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 300PSIA 0.1V

Technical Specifications

Parameters and characteristics for this part

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Features	Applications	Accuracy	Package / Case	Termination Style	Output [Max]	Operating Pressure	Operating Pressure	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type
TE Connectivity Measurement Specialties 86-300A-C	900 PSI	6205.28 kPa	No Port	Temperature Compensated	Board Mount	0.1 %	Cylinder	Cable with Connector	100 mV	300 PSI	2068.43 kPa	Wheatstone Bridge	125 °C	-40 °C
TE Connectivity Measurement Specialties 86-300G-C	900 PSI	6205.28 kPa	No Port	Temperature Compensated	Board Mount	0.1 %	Cylinder	Cable with Connector	100 mV	300 PSI	2068.43 kPa	Wheatstone Bridge	125 °C	-40 °C	Vented Gauge
TE Connectivity Measurement Specialties 86-300G-R	900 PSI	6205.28 kPa	No Port	Temperature Compensated	Board Mount	0.1 %	Cylinder	Cable with Connector	100 mV	300 PSI	2068.43 kPa	Wheatstone Bridge	125 °C	-40 °C	Vented Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 300PSI (2068.43kPa) Absolute 0 mV ~ 100 mV Cylinder

Technical documentation and resources

No documents available
