2412C SL005

Active

ALPHA WIRE

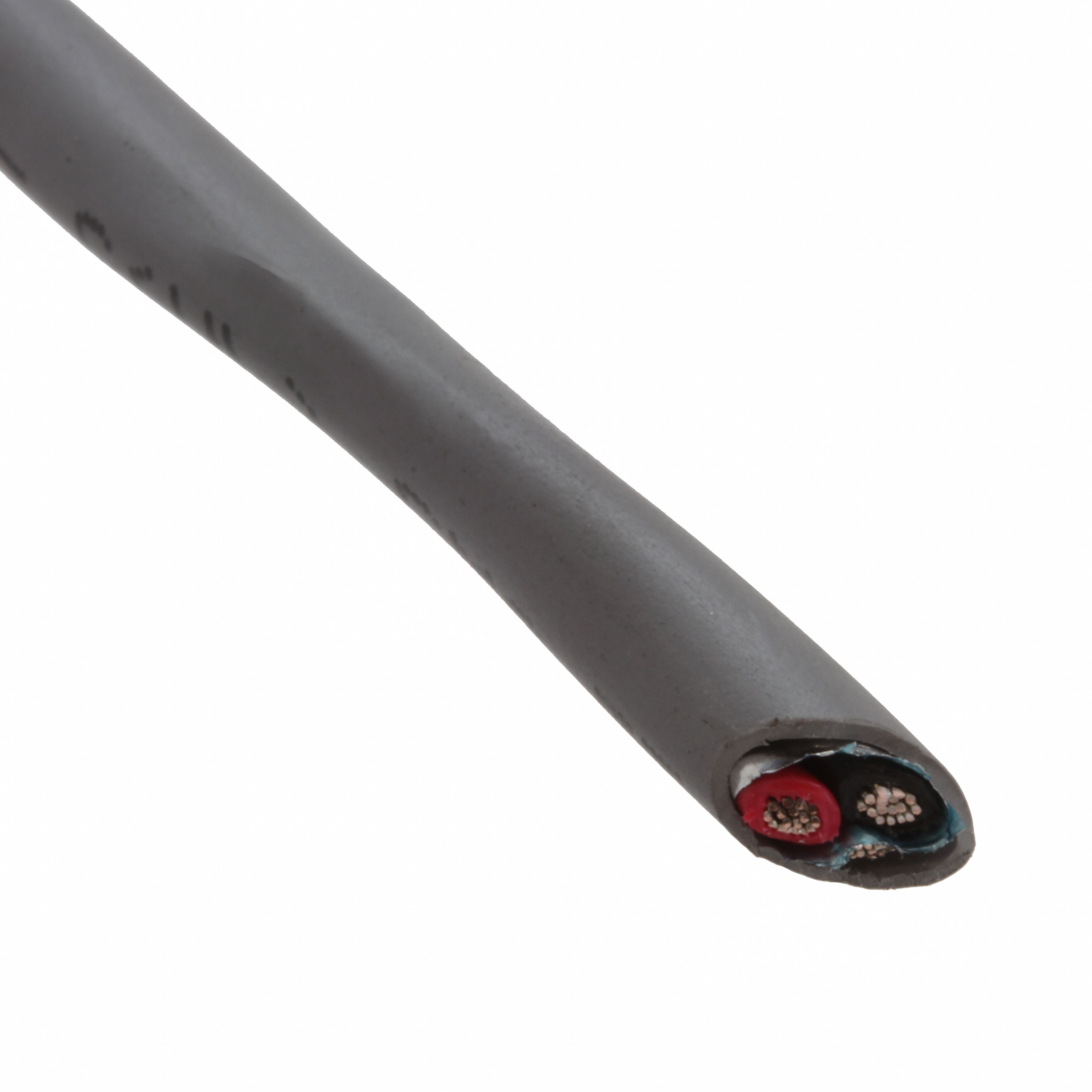

CABLE 2COND 20AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 20AWG SLATE SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2412C SL005	2412C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.67 mm	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in	0.184 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	2	2
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 20 AWG, 1000 FT, 304.8 M

Part	Wire Gauge	Shield Coverage	Conductor Insulation	Conductor Material	Shield Type	Voltage	Jacket Color	Length	Length	Features	Shield Material	Cable Type	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 2412C SL001	20 AWG	100 %	Polyethylene (PE)	Copper, Tinned	Foil	300 V	Slate	1000 ft	304.8 m	Drain Wire	Aluminum	Multi-Conductor	2	0.02 in	0.508 mm	28	7	4.67 mm	0.184 in	Communication, Control	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 2412C SL005	20 AWG	100 %	Polyethylene (PE)	Copper, Tinned	Foil	300 V	Slate			Drain Wire	Aluminum	Multi-Conductor	2	0.02 in	0.508 mm	28	7	4.67 mm	0.184 in	Communication, Control	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft
ALPHA WIRE 2412C SL021	20 AWG	100 %	Polyethylene (PE)	Copper, Tinned	Foil	300 V	Slate	1000 ft	304.8 m	Drain Wire	Aluminum	Multi-Conductor	2	0.02 in	0.508 mm	28	7	4.67 mm	0.184 in	Communication, Control	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 2412C SL022	20 AWG	100 %	Polyethylene (PE)	Copper, Tinned	Foil	300 V	Slate			Drain Wire	Aluminum	Multi-Conductor	2	0.02 in	0.508 mm	28	7	4.67 mm	0.184 in	Communication, Control	Poly-Vinyl Chloride (PVC)	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 0.95

General part information

2 Conductor Multi-Conductor Cable Slate 20 AWG Foil 100.0' (30.5m)
