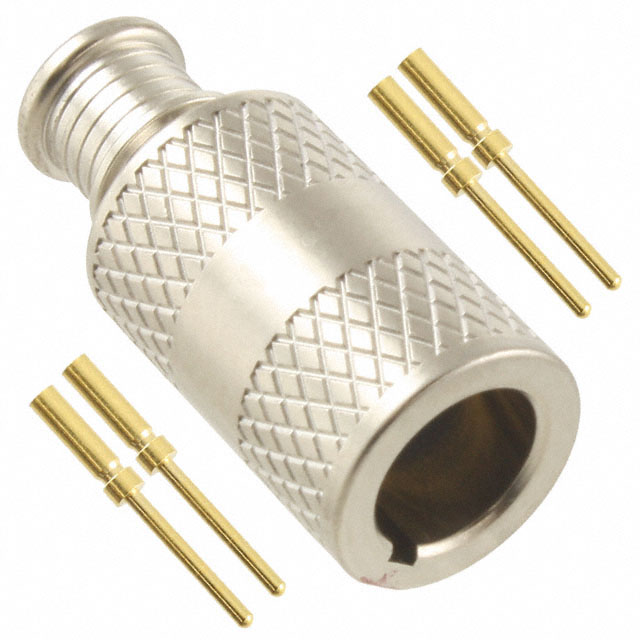

Specification	MKJ4A1F6-4P

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Current Rating	5 A
Fastening Type	Push-Pull
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert Length	6 mm
Shell Size - Insert Width	4 mm
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 V

MKJ4A Series

Part	Connector Type	Color	Fastening Type	Number of Positions	Current Rating	Shielding	Applications	Termination	Primary Material	Shell Material	Ingress Protection	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Shell Finish	Shell Size - Insert Width	Shell Size - Insert Length	Contact Finish - Mating	Insert Material	Orientation	Mounting Type	Contact Finish Thickness - Mating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Voltage Rating
ITT Cannon, LLC MKJ4A1Z5-3P	Male Pins Receptacle	Black	Push-Pull	3	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-65 °C	175 °C	Copper Alloy	Black Zinc Nickel	3 mm	5 mm	Gold	Thermoplastic	N (Normal)	Free Hanging (In-Line)	50 µin
ITT Cannon, LLC MKJ4A1W7-10PD	Male Pins Receptacle	Olive Drab	Push-Pull	10	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C	Copper Alloy	Olive Drab Cadmium			Gold	Thermoplastic	D	Free Hanging (In-Line)		7	10 S	500 V
ITT Cannon, LLC MKJ4A6W9-19PA	Male Pins Plug	Olive Drab	Push-Pull	19	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C	Copper Alloy	Olive Drab Cadmium			Gold	Thermoplastic	A	Free Hanging (In-Line)		9	19	500 V
ITT Cannon, LLC MKJ4A6F6-7SB	Female Sockets Plug	Silver	Push-Pull	7	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C	Copper Alloy	Electroless Nickel			Gold	Thermoplastic	B	Free Hanging (In-Line)		6	7	500 V
ITT Cannon, LLC MKJ4A6W6-7PA	Male Pins Plug	Olive Drab	Push-Pull	7	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C	Copper Alloy	Olive Drab Cadmium			Gold	Thermoplastic	A	Free Hanging (In-Line)		6	7	500 V
ITT Cannon, LLC MKJ4A6F6-4PC	Male Pins Plug	Silver	Push-Pull	4	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C	Copper Alloy	Electroless Nickel	4 mm	6 mm	Gold	Thermoplastic	C	Free Hanging (In-Line)				500 V
ITT Cannon, LLC MKJ4A1W7-10PA	Male Pins Receptacle	Olive Drab	Push-Pull	10	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C	Copper Alloy	Olive Drab Cadmium			Gold	Thermoplastic	A	Free Hanging (In-Line)		7	10 S	500 V
ITT Cannon, LLC MKJ4A1W9-19PC	Male Pins Receptacle	Olive Drab	Push-Pull	19	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C	Copper Alloy	Olive Drab Cadmium			Gold	Thermoplastic	C	Free Hanging (In-Line)		9	19	500 V
ITT Cannon, LLC MKJ4A6F9-19P	Male Pins Plug		Push-Pull	19	5 A	Shielded		Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C		Electroless Nickel			Gold		N (Normal)	Free Hanging (In-Line)	50 µin	9	19	500 V
ITT Cannon, LLC MKJ4A1W6-7S	Female Sockets Receptacle	Olive Drab	Push-Pull	7	5 A	Shielded		Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 °C	150 °C		Olive Drab Cadmium			Gold		N (Normal)	Free Hanging (In-Line)	50 µin	6	7	500 V
