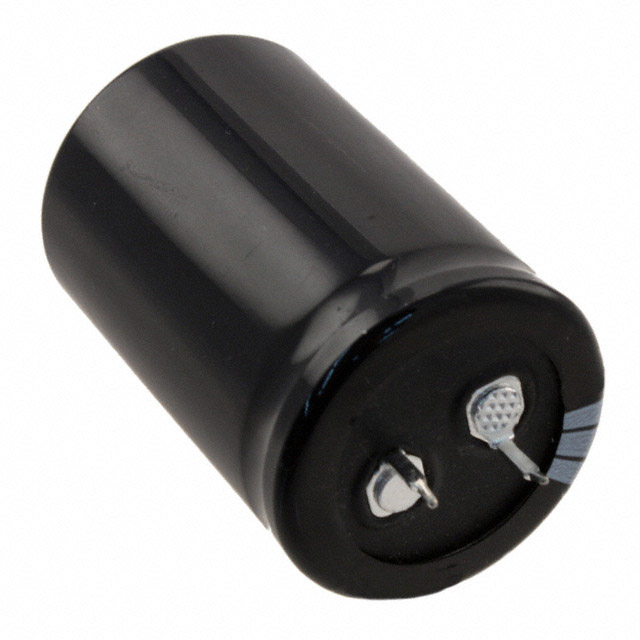

ELH229M025AS4AA

Active

KEMET

CAP ALUM 22000UF 20% 25V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 22000UF 20% 25V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	ELH229M025AS4AA

Applications	General Purpose
Capacitance	22000 µF
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	6.032 A
Ripple Current @ Low Frequency	5.2 A
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Capacitance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Applications	Lead Spacing	Lead Spacing	Voltage - Rated	Lifetime @ Temp.	Tolerance	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
KEMET ELH229M025AS4AA	22000 µF	5.2 A	6.032 A	42 mm	1.654 in	30 mm	1.181 inches	Radial Can - Snap-In	General Purpose	0.394 in	10 mm	25 VDC	2000 Hrs	20 %	Polar	85 °C	-40 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
