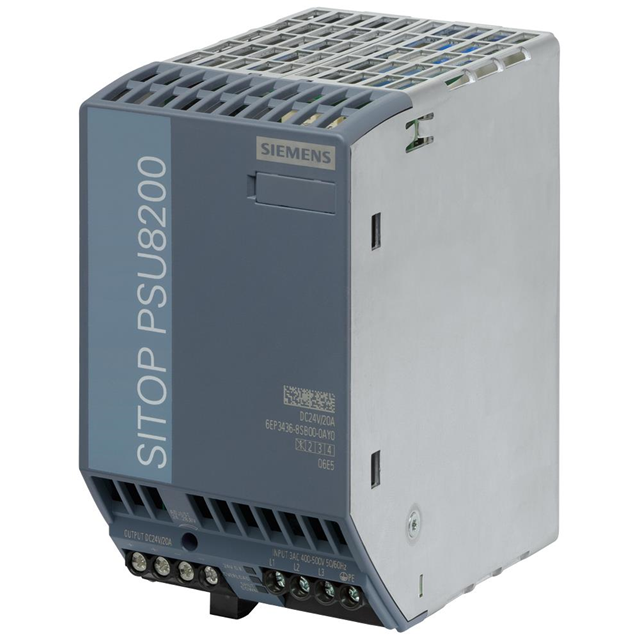

6EP34368SB000AY0

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 480W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP34368SB000AY0

AC Voltage - Input [Max]	500 VAC
AC Voltage - Input [Min]	400 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CSA, cCSAus, cULus, UL, cUL, CB, CE
Current - Output (Max) [Max]	20 A
Efficiency	94 %
Features	Adjustable Output, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	480 W
Size / Dimension [x]	125 mm
Size / Dimension [x]	4.92 in
Size / Dimension [y]	70 mm
Size / Dimension [y]	2.76 in
Size / Dimension [z]	125 mm
Size / Dimension [z]	4.92 in
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	Current - Output (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Features	Approval Agency	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Input Type	Efficiency	Power (Watts)	Applications	Voltage - Output 1	Voltage - Output 3	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 4	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Siemens 6EP34368SB000AY0	20 A	500 VAC	400 VAC	-25 °C	70 °C	1	Adjustable Output IP20	CB cCSAus CE CSA cUL cULus UL	60950-1 UL 508	70 mm	125 mm	2.76 in	4.92 in	125 mm	4.92 in	AC	94 %	480 W	Hazardous Locations Industrial ITE (Commercial)	24 V
Siemens 6EP34368MB002CY0		575 VAC	320 VAC	-25 °C	60 °C	4	Adjustable Output IP20	cCSAus CE CSA cULus UL	60950-1 UL 508		150 mm	3.94 in	5.91 "		4.92 in	AC	93 %		Industrial ITE (Commercial)	24 V	24 V	100 mm	125 mm	24 V	5 A	5 A	5 A	5 A	24 V
