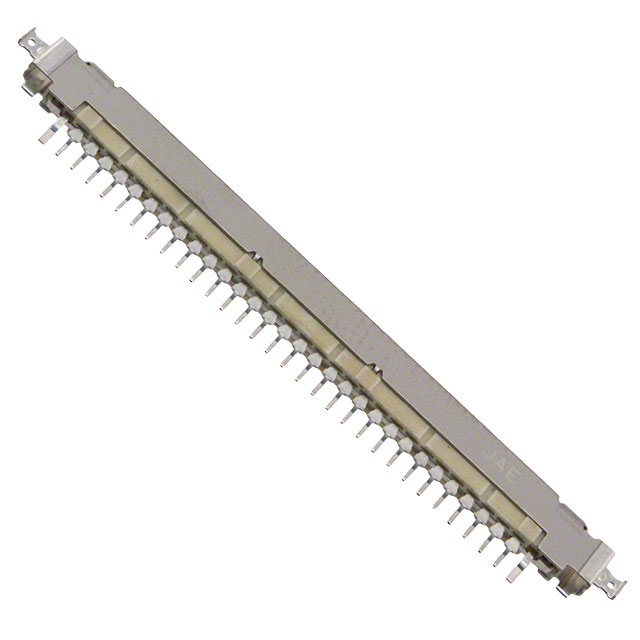

FI-XPB30SL-HF10

Obsolete

JAE Electronics

CONN RCPT 30P 0.039 GOLD SMD R/A

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 30P 0.039 GOLD SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	FI-XPB30SL-HF10

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Fastening Type	Friction Lock
Features	Shielded, Grounding Pins, Solder Retention
Insulation Color	Beige
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Cutout, Right Angle, Surface Mount, Bottom Mount, Board Edge
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Material Flammability Rating	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Insulation Material	Contact Type	Mounting Type	Style	Connector Type	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Features	Number of Rows	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Material
JAE Electronics FI-XPB30SRLA-HF11
JAE Electronics FI-XPB30SL-HF10	UL94 V-0	Gold	Tin	Beige	Plastic	Non-Gendered	Board Edge Bottom Mount Cutout Right Angle Surface Mount	Board to Cable/Wire	Receptacle	Friction Lock	All	12 µin	0.3 µm	Solder	Grounding Pins Shielded Solder Retention	1	30	0.039 in	1 mm	Copper Alloy
JAE Electronics FI-XPB30SRL-HF11	UL94 V-0	Gold	Tin	Black	Plastic	Non-Gendered	Board Edge Bottom Mount Cutout Reverse Mount Right Angle Surface Mount	Board to Cable/Wire	Receptacle	Friction Lock	All	12 µin	0.3 µm	Solder	Grounding Pins Shielded Solder Retention	1	30	0.039 in	1 mm	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Receptacle Connector 0.039" (1.00mm) Board Edge, Cutout; Bottom Mount, Surface Mount, Right Angle Gold

Technical documentation and resources

No documents available
