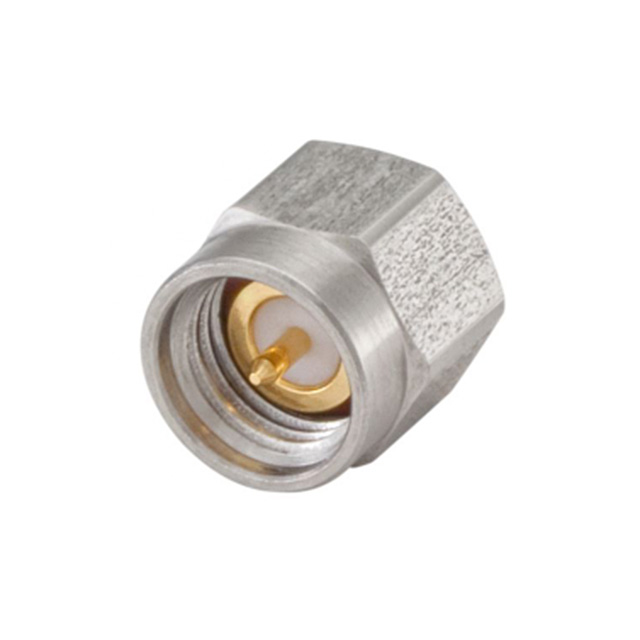

32S122-271S5

Active

Rosenberger

CONN SMA PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32S122-271S5

Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Mounting Type	Contact Termination	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Style	Voltage Rating	Dielectric Material	Center Contact Plating	Mating Cycles	Body Material	Housing Color	Number of Ports	Connector Type	Impedance	Frequency - Max [Max]	Cable Group
Rosenberger 32S122-271S5	Free Hanging (In-Line)	Solder	Solder	-65 ░C	165 °C	Brass	SMA	480 V	Polytetrafluoroethylene (PTFE)	Gold	500	Stainless Steel	Silver	1	Male Pin Plug	50 Ohms	18 GHz	RG-405 (.085" Semi Rigid)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
