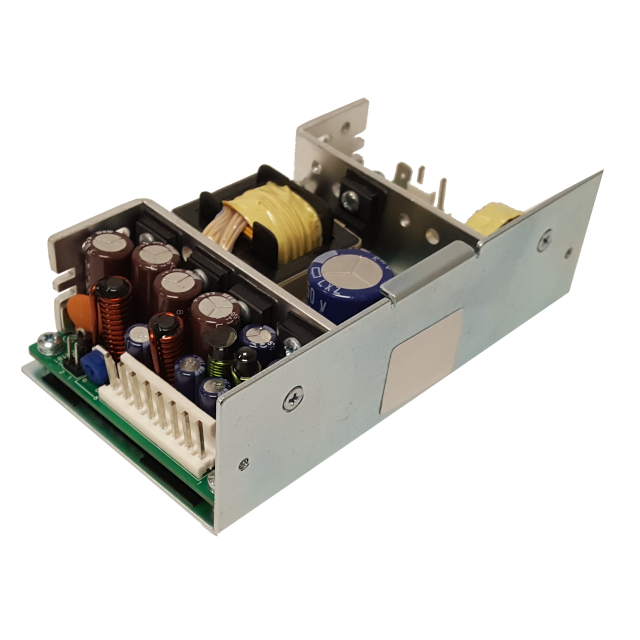

1010781CH
ActiveIntegrated Power Designs
DC/DC CONVERTER 5V +/-15V 70W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1010781CH
ActiveIntegrated Power Designs
DC/DC CONVERTER 5V +/-15V 70W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010781CH |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output (Max) [Max] | 6 A, 2 A |
| Efficiency | 78 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 70 W |
| Size / Dimension [x] | 4.79 " |
| Size / Dimension [x] | 121.6 mm |
| Size / Dimension [y] | 2.62 " |
| Size / Dimension [y] | 66.5 mm |
| Size / Dimension [z] | 1.48 " |
| Size / Dimension [z] | 37.6 mm |
| Standard Number | 60601-1, 62368-1 |
| Type | Chassis |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 4 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 123.18 | |
| 25 | $ 115.12 | |||
| 100 | $ 112.02 | |||
Description
General part information
1010781 Series
Chassis DC DC Converter 4 Output 5V 15V -15V 6A, 2A, 2A 72V Input
