U-1PU-113-500B2

Active

AMPHENOL RF

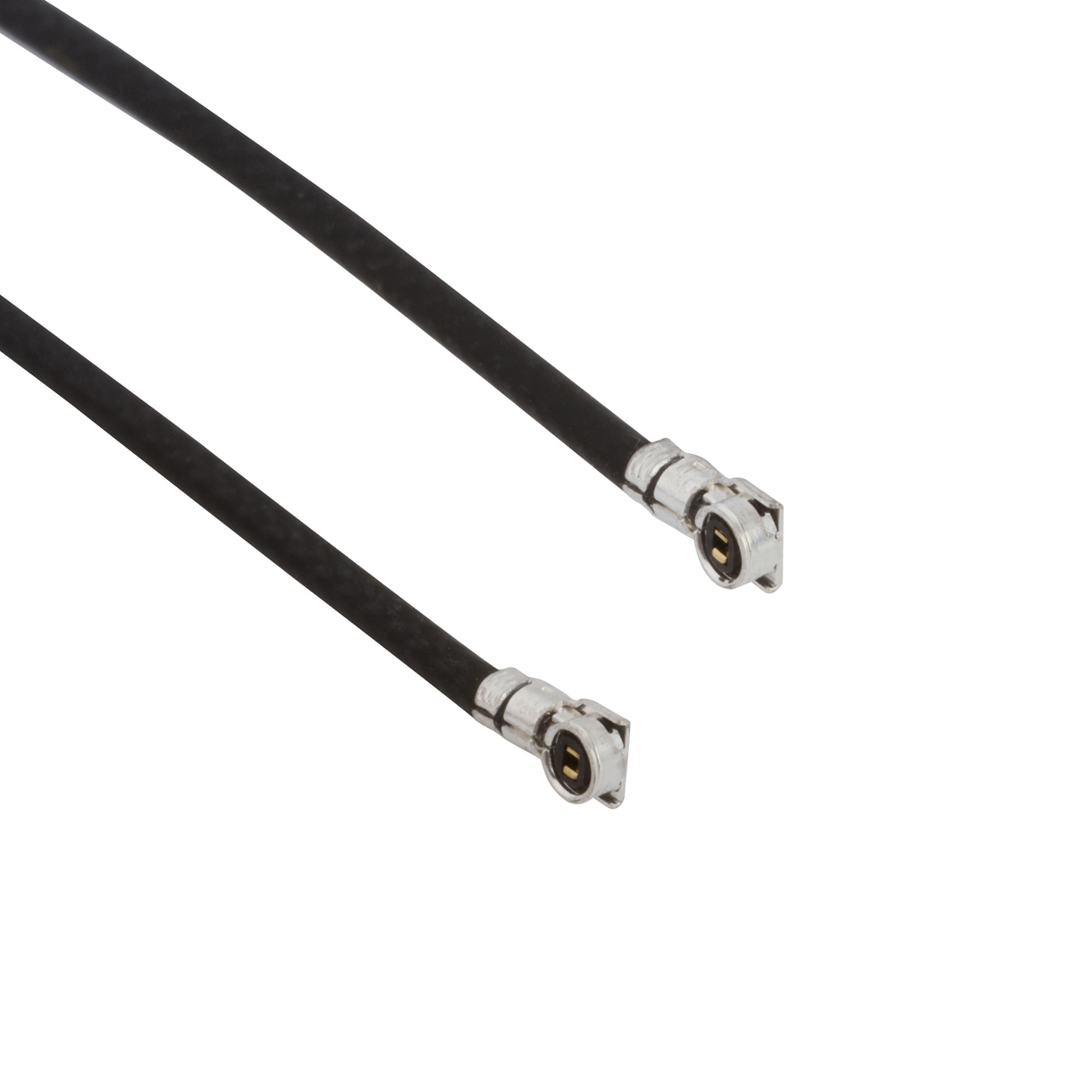

CBL ASSY AMC4 PLUG-PLUG 19.69"

Search across all available documentation for this part.

Active

AMPHENOL RF

CBL ASSY AMC4 PLUG-PLUG 19.69"

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL ASSY AMC4 PLUG-PLUG 9.843"

Part	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Type	Style	Length [x]	Length [x]	Frequency - Max [Max]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Overall Impedance	2nd Contact Gender	1st Connector	1st Contact Gender	Length	Length
AMPHENOL RF U-1PU-113-250B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4	9.843 "	250 mm	6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female
AMPHENOL RF U-1PU-113-200B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4			6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female	7.874 in	200 mm
AMPHENOL RF U-1PU-113-500B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4			6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female	19.69 "	50 cm
AMPHENOL RF U-1PU-113-600B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4			6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female	23.62 in	600 mm
AMPHENOL RF U-1PU-113-035B2	Free Hanging (In-Line)	AMC4 Plug, Right Angle	Free Hanging (In-Line)	AMC4 to AMC4	1.378 in	35 mm	6000 MHz	1.13mm OD Coaxial Cable	85 °C	-40 °C	Black	50 Ohms	Female	AMC4 Plug, Right Angle	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 5.53

General part information

Cable Assembly Coaxial AMC4 to AMC4 1.13mm OD Coaxial Cable 19.69" (500.00mm)
