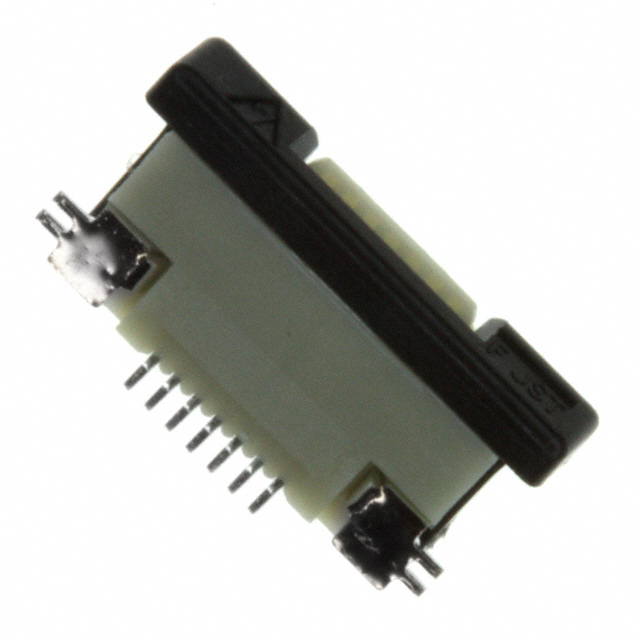

07FLZ-SM2-TB

Active

JST Sales America Inc.

CONN FFC FPC TOP 7POS 0.5MM R/A

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC FPC TOP 7POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	07FLZ-SM2-TB

Actuator Color	Black
Actuator Material	Polyamide (PA6T), Nylon 6T
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Gray
Housing Material	Polyamide (PA6T), Nylon 6T
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Features	Housing Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Housing Color	FFC, FCB Thickness	Termination	Number of Positions	Contact Material	Cable End Type	Locking Feature	Flat Flex Type	Current Rating (Amps)	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mounting Type	Actuator Material	Actuator Color	Contact Finish
JST Sales America Inc. 07FLZ-SM2-TB	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)	Polyamide (PA6T) Nylon 6T	50 V	-25 °C	85 °C	Contacts Top	Gray	0.3 mm	Solder	7	Phosphor Bronze	Tapered	Slide Lock	FFC FPC	0.5 A	0.079 in	2 mm	0.5 mm	0.02 in	Surface Mount Right Angle	Polyamide (PA6T) Nylon 6T	Black	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
