RT4539 Series

Part	Supplied Contents	Contents	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Total Output Count	Output Type	Non-Isolated Output Count	Utilized IC / Part	Voltage - Output	Current - Output / Channel	Features	Type	Frequency (Min)	Frequency (Max)	Topology	Voltage - Supply (Min)	Internal Switch(s)	Mounting Type	Voltage - Supply (Max)	Voltage - Output (Min)	Voltage - Output (Max)	Package / Case	Package Name	Package Width	Package Length	Applications	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Dimming

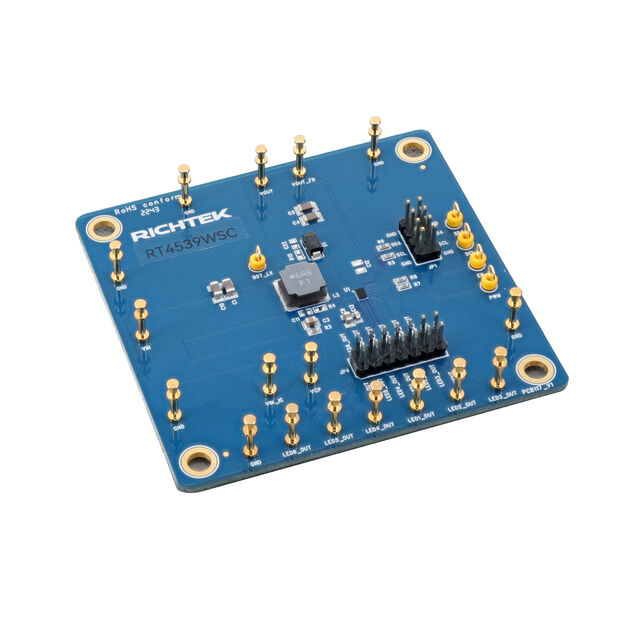

Richtek USA Inc. EVB_RT4539WSC	Board(s)	Board	24 VAC	2.7 V	6	Non-Isolated	6	RT4539	36 V	35 mA	Dimmable
Richtek USA Inc. RT4539WSC										35 mA		DC DC Regulator	300 kHz	1.6 MHz	Step-Up (Boost)	2.7 V	Yes	Surface Mount	24 V	2.7 V	36 V	20-UFBGA WLCSP	20-WLCSP	2.37 mm	1.71 mm	Backlight	6	85 °C	-40 °C	Analog I2C PWM
