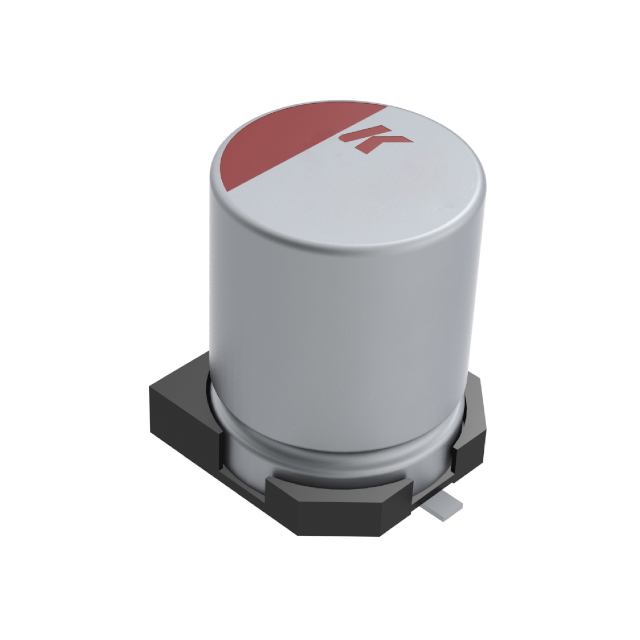

A766KE476M1DLAE045
ActiveKEMET
POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 47 ΜF, 20 V, RADIAL CAN - SMD, 0.045 OHM
Deep-Dive with AI
Search across all available documentation for this part.
A766KE476M1DLAE045
ActiveKEMET
POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 47 ΜF, 20 V, RADIAL CAN - SMD, 0.045 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A766KE476M1DLAE045 |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 45 mOhm |
| Height - Seated (Max) [Max] | 7 mm |
| Height - Seated (Max) [Max] | 0.276 " |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 1.89 A |
| Ripple Current @ Low Frequency | 94.5 mA |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Surface Mount Land Size [x] | 0.327 " |
| Surface Mount Land Size [x] | 8.3 mm |
| Surface Mount Land Size [y] | 8.3 mm |
| Surface Mount Land Size [y] | 0.327 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 20 V |
A766KE Series
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Applications | Lifetime @ Temp. | Ripple Current @ High Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Mounting Type | Capacitance | ESR (Equivalent Series Resistance) | Tolerance | Type | Ripple Current @ Low Frequency | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 1.89 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 47 µF | 45 mOhm | 20 % | Polymer | 94.5 mA | 20 V |
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 2.76 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 82 µF | 30 mOhms | 20 % | Polymer | 138 mA | 16 V |
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 2.76 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 150 µF | 30 mOhms | 20 % | Polymer | 138 mA | 10 V |
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 3.22 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 220 µF | 22 mOhms | 20 % | Polymer | 161 mA | 6.3 V |
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 2.9 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 120 µF | 27 mOhms | 20 % | Polymer | 145 mA | 16 V |
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 3.22 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 270 µF | 22 mOhms | 20 % | Polymer | 161 mA | 4 V |
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 3.22 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 560 µF | 22 mOhms | 20 % | Polymer | 161 mA | 4 V |
KEMET | 7 mm | 0.276 " | Radial Can - SMD | General Purpose | 5000 Hrs | 1.5 A | 105 ░C | -55 °C | 0.315 " | 8 mm | 0.327 " | 8.3 mm | 0.327 in | 8.3 mm | Surface Mount | 10 µF | 60 mOhms | 20 % | Polymer | 75 mA | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.47 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.47 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| Tape & Reel (TR) | 1000 | $ 0.21 | ||
| 2000 | $ 0.19 | |||
| 5000 | $ 0.18 | |||
| 10000 | $ 0.17 | |||
| 25000 | $ 0.16 | |||
| 50000 | $ 0.16 | |||
| Newark | Each (Supplied on Full Reel) | 5000 | $ 0.21 | |
| 10000 | $ 0.19 | |||
| 20000 | $ 0.18 | |||
| 30000 | $ 0.17 | |||
| 50000 | $ 0.16 | |||
Description
General part information
A766KE Series
47 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 5000 Hrs @ 105°C
