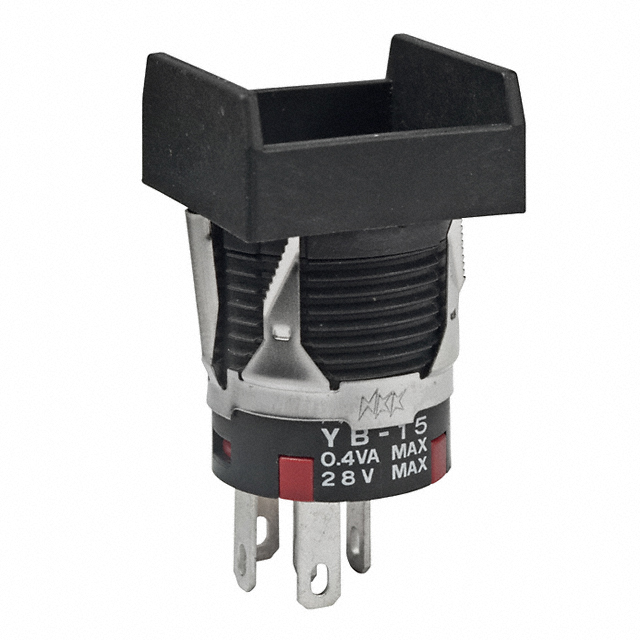

Specification	YB15KKG01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating	0.4 VA
Electrical Life (Cycles)	100000 Cycles
Features	Stainless Steel
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Mom
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15KK Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Voltage Rating - DC	Circuit	Color	Illumination Type	Type	Illumination Voltage (Nominal)	Features	Mounting Type	Current Rating	Termination Style	Color - Actuator/Cap	Actuator Marking	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating - AC	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Switch Function	Quick Connect Size (0.110")
NKK Switches YB15KKW03-5C05-JB	1000000 Cycles	100000 Cycles	30 V	SPDT	Red	LED	Illuminated Standard	5 V	Stainless Steel	Panel Mount Snap-In	3 A	PC Pin	Clear (White Filter/Diffuser)	No Marking	-25 °C	50 °C	125 V	16 mm	Circular	Button Square	On-Mom
NKK Switches YB15KKW01-BB	1000000 Cycles	100000 Cycles	30 V	SPDT			Standard		Stainless Steel	Panel Mount Snap-In	3 A	Quick Connect Solder	White (White Filter/Diffuser)	No Marking	-25 °C	70 °C	125 V	16 mm	Circular	Button Square	On-Mom	0.11 in
NKK Switches YB15KKG01	1000000 Cycles	100000 Cycles	28 V	SPDT			Standard		Stainless Steel	Panel Mount Snap-In	0.4 VA	Quick Connect Solder		No Marking	-25 °C	70 °C	28 V	16 mm	Circular	Plunger for Cap	On-Mom	0.11 in
NKK Switches YB15KKG01-JC	1000000 Cycles	100000 Cycles	28 V	SPDT			Standard		Stainless Steel	Panel Mount Snap-In	0.4 VA	Quick Connect Solder	Clear (Red Filter/Diffuser)	No Marking	-25 °C	70 °C	28 V	16 mm	Circular	Button Square	On-Mom	0.11 in
NKK Switches YB15KKW01-5F05-JB	1000000 Cycles	100000 Cycles	30 V	SPDT	Green	LED	Illuminated Standard	5 V		Panel Mount Snap-In	3 A	Quick Connect Solder	Clear (White Filter/Diffuser)		-25 °C	50 °C	125 V	16 mm	Circular	Button Square	On-Mom	0.11 in
NKK Switches YB15KKW03	1000000 Cycles	100000 Cycles	30 V	SPDT			Standard		Stainless Steel	Panel Mount Snap-In	3 A	PC Pin		No Marking	-25 °C	70 °C	125 V	16 mm	Circular	Plunger for Cap	On-Mom
NKK Switches YB15KKW01-5F-JF	1000000 Cycles	100000 Cycles	30 V	SPDT	Green	LED	Illuminated Standard	2.2 VDC	Stainless Steel	Panel Mount Snap-In	3 A	Quick Connect Solder	Clear (Green Filter/Diffuser)	No Marking	-25 °C	50 °C	125 V	16 mm	Circular	Button Square	On-Mom	0.11 in
NKK Switches YB15KKW01-5D-JD	1000000 Cycles	100000 Cycles	30 V	SPDT	Amber	LED	Illuminated Standard	2 VDC	Stainless Steel	Panel Mount Snap-In	3 A	Quick Connect Solder	Clear (Amber Filter/Diffuser)	No Marking	-25 °C	50 °C	125 V	16 mm	Circular	Button Square	On-Mom	0.11 in
NKK Switches YB15KKW01-2CF05-JB	1000000 Cycles	100000 Cycles	30 V	SPDT	Green Red	LED	Illuminated Standard	5 V	Stainless Steel	Panel Mount Snap-In	3 A	Quick Connect Solder	Clear (White Filter/Diffuser)	No Marking	-25 °C	50 °C	125 V	16 mm	Circular	Button Square	On-Mom	0.11 in
NKK Switches YB15KKW01-5C-JC	1000000 Cycles	100000 Cycles	30 V	SPDT	Red	LED	Illuminated Standard	1.9 VDC	Stainless Steel	Panel Mount Snap-In	3 A	Quick Connect Solder	Clear (Red Filter/Diffuser)	No Marking	-25 °C	50 °C	125 V	16 mm	Circular	Button Square	On-Mom	0.11 in
