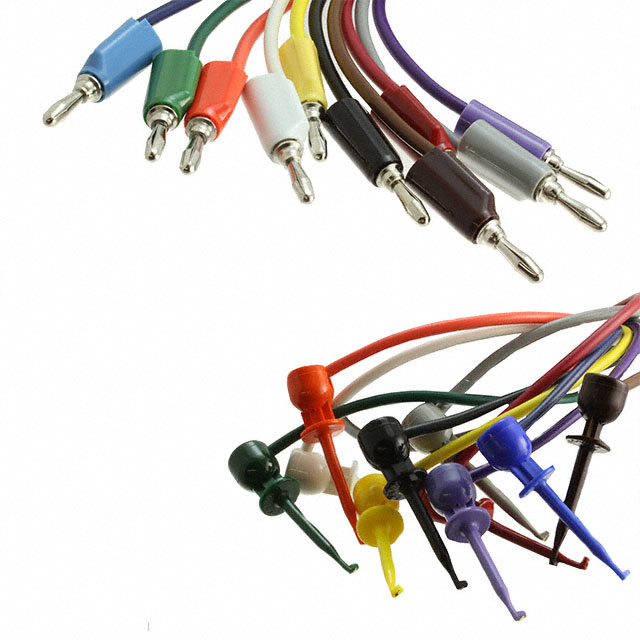

601W-18-S

Active

E-Z-Hook

TEST LEAD BANANA/GRAB 18" SET/10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

601W-18-S

Active

E-Z-Hook

TEST LEAD BANANA/GRAB 18" SET/10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	601W-18-S	601W Series

1st Connector	Single, Stackable, Banana Plug	Single, Stackable, Banana Plug
2nd Connector	Mini Hook	Mini Hook
Cable Length	457.2 mm	457.2 - 1524 mm
Cable Length	18 in	5 - 36 in
Configuration	Banana to Grabber, Hook	Banana to Grabber, Hook
Contents	Multiple Colors	1 Lead, Black, Multiple Colors, Red, Gray, Black and Red, 2 Leads, Yellow, 1 Lead, 1 Lead, Orange, 1 Lead, Blue
Contents	10 Leads	10 Leads
Contents	-	1
Contents	-	1
Current Rating (Amps)	4 A	4 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	5 kV	5 kV
Voltage - Rated	5 kV	5 kV
Wire Gauge	18 AWG	18 AWG

601W Series

TEST LEAD BANANA TO GRABBER 36"

Part	Voltage - Rated	Voltage - Rated	Wire Gauge	Stacking Method	2nd Connector	Material - Insulation	Contents	Configuration	Cable Length	Cable Length	Type	1st Connector	Current Rating (Amps)	Contents	Contents [custom]	Contents [custom]
E-Z-Hook 601W-36BLK	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Black	Banana to Grabber, Hook	36 in	914.4 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-18-S	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Multiple Colors	Banana to Grabber, Hook	18 in	457.2 mm	Patch Cord	Banana Plug, Single, Stackable	4 A	10 Leads
E-Z-Hook 601W-36RED	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Red	Banana to Grabber, Hook	36 in	914.4 mm	Patch Cord	Banana Plug, Single, Stackable	4 A		1
E-Z-Hook 601W-60GRY	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Gray	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A			1
E-Z-Hook 601W-18 R/B	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	2 Leads, Black and Red	Banana to Grabber, Hook	18 in	457.2 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-18BLK	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Black	Banana to Grabber, Hook	18 in	457.2 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-60YEL	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Yellow	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-60ORN	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Orange	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-60BLU	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Blue	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-36-S	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Multiple Colors	Banana to Grabber, Hook	36 in	914.4 mm	Patch Cord	Banana Plug, Single, Stackable	4 A	10 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.92
		5	$ 72.47
		10	$ 71.03
		25	$ 69.18
		50	$ 67.81
		100	$ 66.47

Description

General part information

601W Series

18.0" (457.20mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 5000V (5kV)

Documents

Technical documentation and resources
