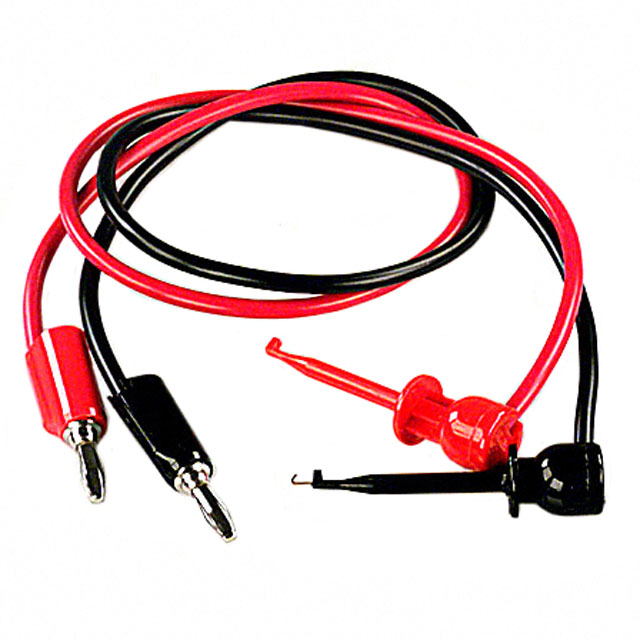

601W-18 R/B

Active

E-Z-Hook

TEST LEAD BANANA/GRABBER 18" 2PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

601W-18 R/B

Active

E-Z-Hook

TEST LEAD BANANA/GRABBER 18" 2PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.39
		5	$ 15.65
		10	$ 15.34
		25	$ 14.94
		50	$ 14.64
		100	$ 14.35
		250	$ 13.98
		500	$ 13.70

Description

General part information

601W Series

18.0" (457.20mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 5000V (5kV)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	601W-18 R/B	601W Series

1st Connector	Single, Stackable, Banana Plug	Single, Stackable, Banana Plug
2nd Connector	Mini Hook	Mini Hook
Cable Length	457.2 mm	457.2 - 1524 mm
Cable Length	18 in	5 - 36 in
Configuration	Banana to Grabber, Hook	Banana to Grabber, Hook
Contents	Black and Red, 2 Leads	1 Lead, Black, Multiple Colors, Red, Gray, Black and Red, 2 Leads, Yellow, 1 Lead, 1 Lead, Orange, 1 Lead, Blue
Contents	-	10 Leads
Contents	-	1
Contents	-	1
Current Rating (Amps)	4 A	4 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	5 kV	5 kV
Voltage - Rated	5 kV	5 kV
Wire Gauge	18 AWG	18 AWG

601W Series

TEST LEAD BANANA TO GRABBER 36"

Part	Voltage - Rated	Voltage - Rated	Wire Gauge	Stacking Method	2nd Connector	Material - Insulation	Contents	Configuration	Cable Length	Cable Length	Type	1st Connector	Current Rating (Amps)	Contents	Contents [custom]	Contents [custom]
E-Z-Hook 601W-36BLK	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Black	Banana to Grabber, Hook	36 in	914.4 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-18-S	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Multiple Colors	Banana to Grabber, Hook	18 in	457.2 mm	Patch Cord	Banana Plug, Single, Stackable	4 A	10 Leads
E-Z-Hook 601W-36RED	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Red	Banana to Grabber, Hook	36 in	914.4 mm	Patch Cord	Banana Plug, Single, Stackable	4 A		1
E-Z-Hook 601W-60GRY	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Gray	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A			1
E-Z-Hook 601W-18 R/B	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	2 Leads, Black and Red	Banana to Grabber, Hook	18 in	457.2 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-18BLK	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Black	Banana to Grabber, Hook	18 in	457.2 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-60YEL	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Yellow	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-60ORN	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Orange	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-60BLU	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	1 Lead, Blue	Banana to Grabber, Hook	5 ft	1524 mm	Patch Cord	Banana Plug, Single, Stackable	4 A
E-Z-Hook 601W-36-S	5 kV	5 kV	18 AWG	Front Stacking	Mini Hook	Poly-Vinyl Chloride (PVC)	Multiple Colors	Banana to Grabber, Hook	36 in	914.4 mm	Patch Cord	Banana Plug, Single, Stackable	4 A	10 Leads
